2.55
9
310
750

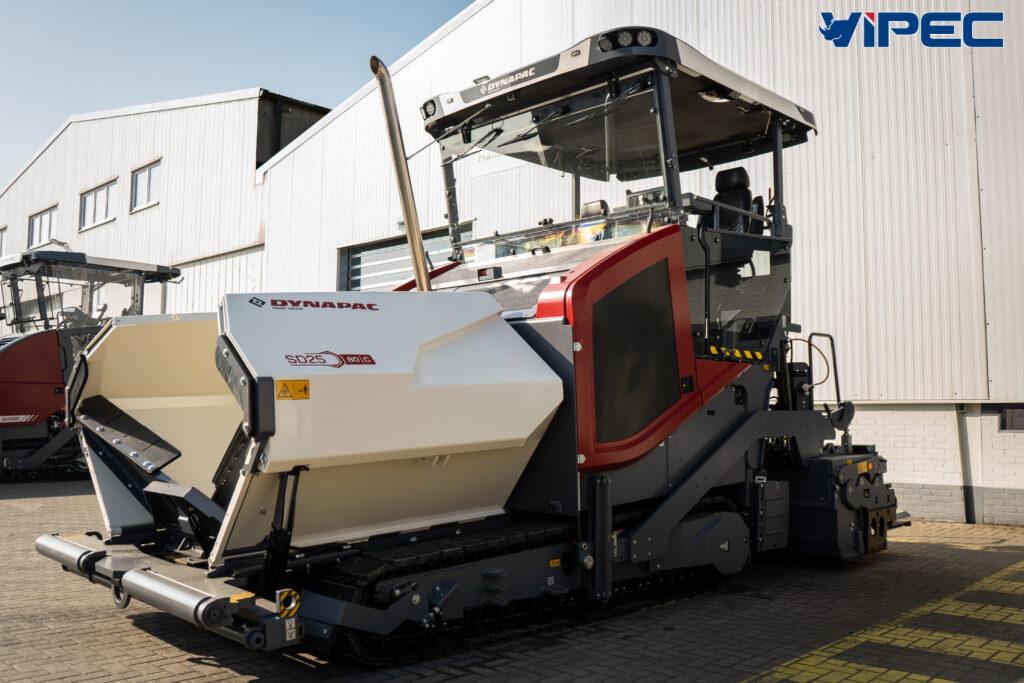

| TECHNICAL DATA | SD25 70C |
| PUSH ROLLER SYSTEM | |
| Standard | Fixed, pivotable |
| Option | SafeImpact – Hydraulic damping, stepless adjustable (20 cm) with automatic function |
| MATERIAL HOPPER | |
| Dumping height | 570 mm |
| Hopper volume | 6 m³ / 12 t |
| Hopper width, internal | 3290 mm |
| CONVEYOR | |
| Conveyor control | Proportional with paddle sensor |
| Conveyor type | Conveyor, reversible |
| Conveyor width | 2 × 655 mm |
| ENGINE – Stage V | |
| Manufacturer / Model | Cummins QSB6.7-C173 |
| Emissions according to | EU Stage V |
| Rated power, SAE J1995 | 129 kW @ 2200 rpm |
| Peak power | 145 kW |
| DEF tank capacity | 37 L |
| Fuel tank capacity | 362 L |
| Average fuel consumption | 9.45 L/h |
| ENGINE – Stage IIIA | |
| Manufacturer / Model | Cummins QSB6.7-C173 |
| Emissions according to | EU Stage IIIA |
| Rated power, SAE J1995 | 129 kW @ 2200 rpm |
| Peak power | 145 kW |
| Fuel tank capacity | 362 L |
| Average fuel consumption | 9.45 L/h |
| DRIVE | |
| Undercarriage type | Crawler |
| Drive type | Independent hydrostatic driven crawler systems |
| Crawler length | 2900 mm |
| Crawler width | 0.32 m |
| Maximum paving speed | 28 m/min |
| Maximum transport speed | 4 km/h |
| AUGER | |
| Auger type | Center drive, reversible |
| Auger diameter | 380 mm |
| Auger control | Independent proportional with sonic sensors |
| Adjustable height | 250 mm |
| Auger wing type | Separately replaceable |
| GENERATOR | |
| Type | Synchronous |
| Nominal power | 25 kVA |
| Peak power | 35 kVA |
| WORKING WIDTH | |
| Minimum working width | 2.55 m |
| Maximum working width | 8.80 m (V5100) / 9.00 m (V6000) |
| Basic working width (retracted) | 2.55 m (V5100) / 3.00 m (V6000) |
| Basic working width (extended) | 5.10 m (V5100) / 6.00 m (V6000) |
| DIMENSIONS | |
| Basic width | 2.55 m |
| Front ramp angle | 15° |
| Transport length | 6.15 m |
| Working width, max. | 9.0 m |
| MASSES | |
| Weight | 20.0 t |
| CAPACITY | |
| Placement thickness (max) | 310 mm |
| Theoretical placement capacity | 700 t/h |
Dynapac’s Dynalink system is a cutting-edge telematics and fleet management solution, designed to provide real-time insights, remote monitoring, and data-driven decision-making for road construction projects. With seamless cloud integration, Dynalink optimizes machine performance, reduces downtime, and enhances operational efficiency.

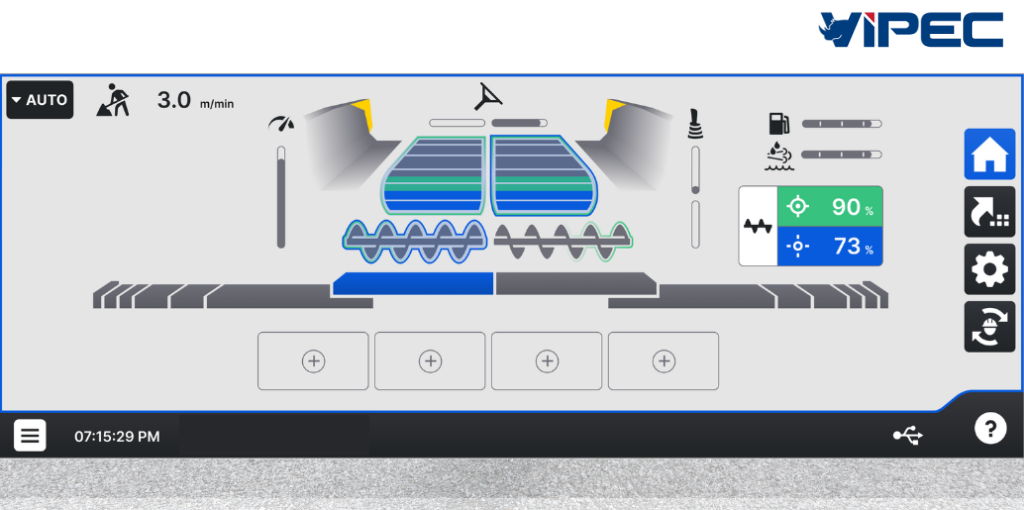

The innovative operating system for asphalt pavers. Designed for maximum efficiency, intuitive operation, and full control over the entire paving process. Pave OS sets new standards in machine control. The software provides a clear user interface, smart automation, and fully customizable controls that perfectly adapt to each operator’s needs.

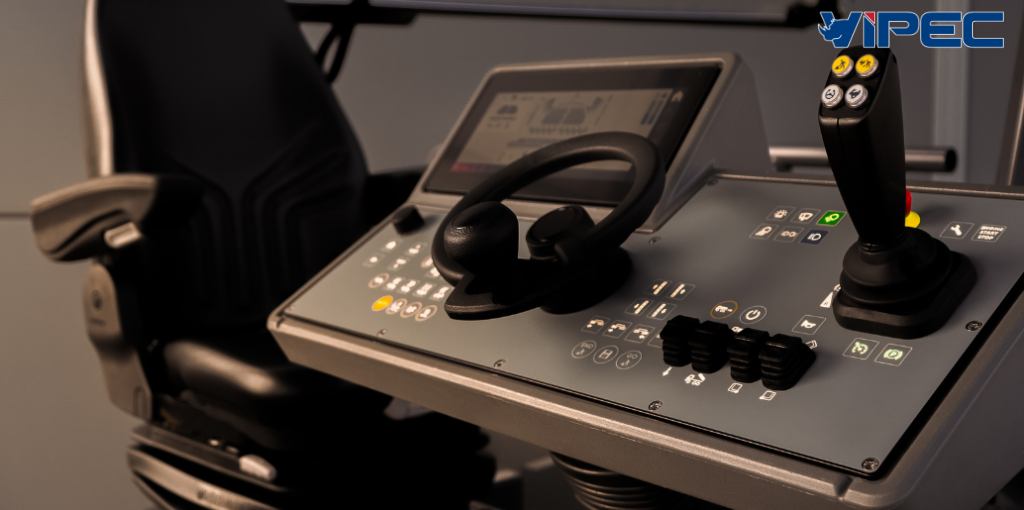

The SD Series features a dual-seat operating system, delivering enhanced comfort and precise control for asphalt paver operators. With an ergonomic dashboard redesign and innovative swing seat, the SD Concept elevates the operator experience through refined control and superior ergonomics.

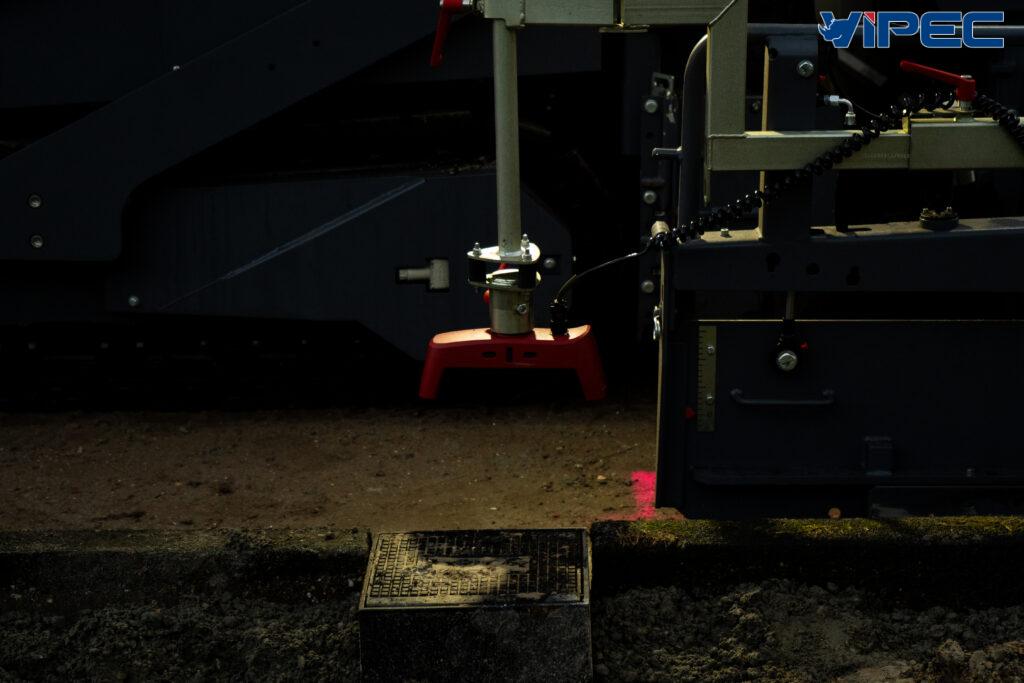

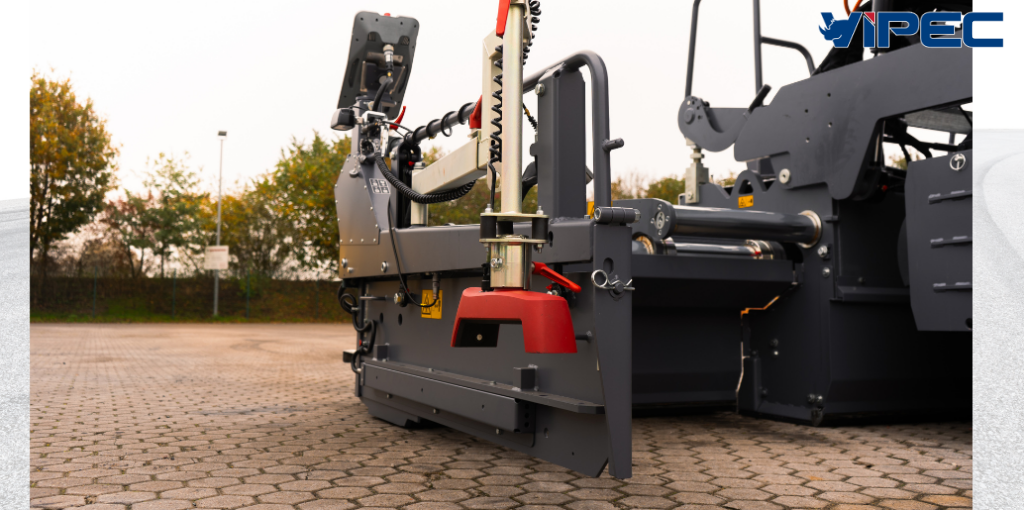

Dynapac developed own leveling sensors which are called Level Control. Level Control ensures seamless machine operation while maintaining compatibility with third-party sensors, providing maximum flexibility for modern road construction.

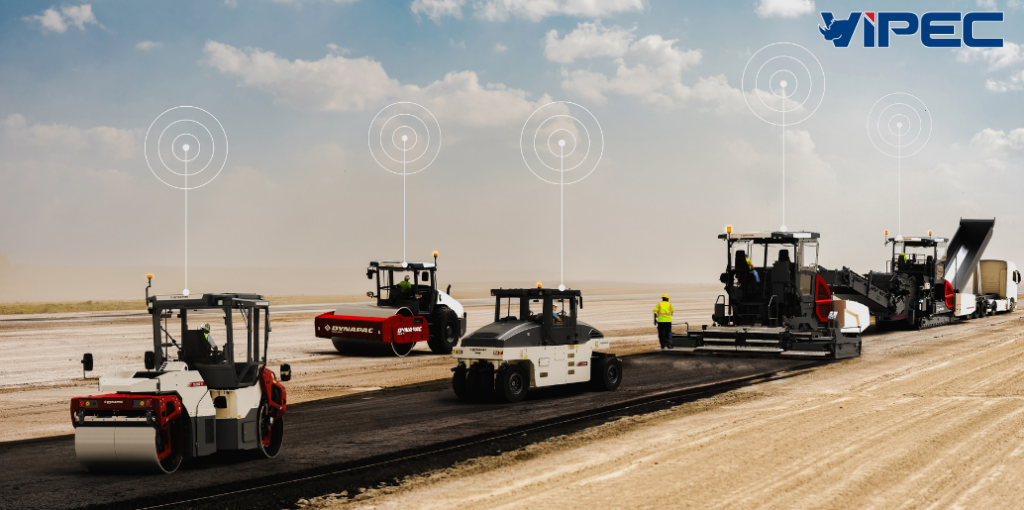

The future of road construction is digital, connected, and data-driven. With Dynapac Nexus and the Open Interface technology, contractors and fleet managers gain unmatched control, real-time insights, and seamless data integration, transforming paving projects into a fully optimized and efficient workflow.

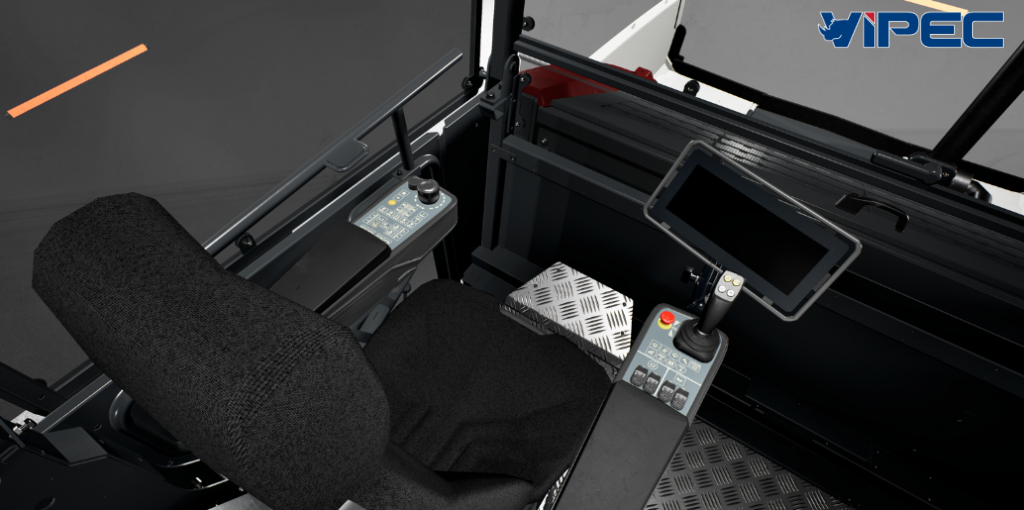

The XD Series Operating Concept redefines efficiency, comfort, and usability for asphalt paver operators. With an innovative single-seat design, fully integrated controls, and state-of-the-art technology, the XD Series offers an unparalleled working environment that maximizes both productivity and ergonomics.
The spray bar automatically follows the screed, ensuring uniform emulsion application while preventing overspray.
A total of 25 precision nozzles provide a spray width of up to 3 meters, with automatic control for maximum accuracy. The Start/Stop function delivers a smooth and consistent spray pattern and allows the spray width to be extended up to 6.5 meters.
The 2,100-liter emulsion tank is equipped with a premium insulation layer to minimize heat loss and maintain optimum emulsion temperature.
The 18 kW electric heating system rapidly heats the emulsion while continuously monitoring the temperature through multiple sensors, ensuring precise temperature control and improved fuel efficiency.
Powered by a Cummins engine, the system delivers reliable performance while automatically cleaning the spray lines after operation, preventing clogging and significantly extending the service life of the spraying system.
The high-capacity supply and return system features onboard dual-side filling pumps, allowing rapid emulsion loading. The fast-return circuit enables precise flow control and supports various construction requirements while keeping the work area clean.
Wide-angle electronically controlled spray nozzles ensure a highly uniform spray pattern while minimizing material consumption.
The nozzles operate independently with automatic flow-rate adjustment according to paving speed, delivering consistent spray coverage and simplifying maintenance.
The VARIO SPEED system automatically adjusts engine speed according to actual operating demand, minimizing fuel consumption and reducing engine wear.
It is particularly effective during frequent changes in paving speed or screed movement.
Powered by a 6-cylinder Cummins engine, the paver delivers outstanding operating stability and ample power under demanding working conditions.
With a maximum output of 142 kW, the machine provides exceptional construction capability while maintaining continuous material feeding and paving operations.
The optimized hydraulic system further enhances overall machine efficiency, while the direct PTO drive improves the performance of both the cleaning system and machine operation.
The tamper is designed with a special geometry to ensure smooth material movement while eliminating dead zones in front of the screed, resulting in a smoother and more uniform pavement surface.
The tamper can be adjusted from 25 to 85 Hz to achieve optimum compaction performance under different paving conditions.
Combined with a high-frequency vibrator and a Hardox 500 wear-resistant tamper bar, the system significantly improves aggregate interlock, paving density, and pavement durability.
The specially designed guide plate effectively directs and evenly distributes paving material, maintaining a stable material head in front of the screed for improved paving quality and a superior finished surface.
The 4-guide-column screed minimizes deformation while ensuring excellent paving quality over wide paving widths.
Its floating screed design allows smooth material flow, enhances paving flatness, and reduces segregation.
The low-profile screed provides excellent visibility, enabling operators to clearly monitor material flow during paving operations.
The electric heating system ensures rapid and uniform temperature distribution across the screed plates.
Independent temperature control is available through either the remote control or the LED display.
The direct heating system enables fast warm-up, stable operation, reduced heat loss, and lower maintenance costs.
