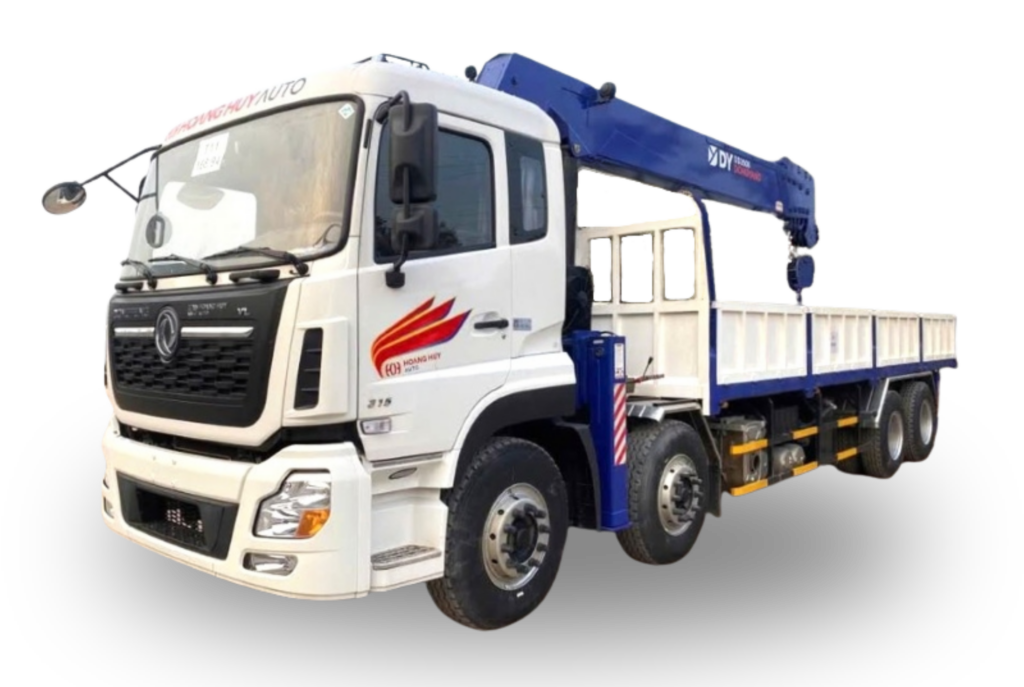

DONGFENG 8x4 DFH1310A3
ISL9.5-340E51A - EURO 5
12000 x 2500 x 3200 mm
6 boom sections
| Item | Content |
| Vehicle Type | Chassis cab truck |
| Brand | DONGFENG |
| Model | DFH1310A3 |
| Engine Number | ISL95340E51A93412866 |
| Curb Weight | 9670 kg |
| Max. Design Gross Weight / Max. Permissible Gross Weight | 31000 /— |
| Permissible Passenger Capacity, excluding driver | 1 |
| Overall Dimensions (Length x Width x Height) | 12000 x 2500 x 3200 mm |
| Wheel Formula | 8 x 4 |
| Wheelbase | 1850 + 5150 + 1350 mm |
| Front Wheel Track | 2040 mm |
| Rear Wheel Track | 1860 mm |
| Engine Code, Type | ISL9.5-340E51A; 4-stroke, 6-cylinder in-line, turbocharged |
| Fuel Type | Diesel |
| Displacement | 9460 cm³ |
| Max. Power / RPM | 251 kW at 1900 rpm |
| Axle 1 Tires | 02 tires; 11.00R20 |
| Axle 2 Tires | 04 tires; 11.00R20 |
| Axle 3 Tires | 04 tires; 11.00R20 |
| Axle 4 Tires | 02 tires; 11.00R20 |
| Category | Description | Unit | SS3506 |
| Capacity | Max. Lifting Capacity | kg.m | 45,000 |
| Max. Working Height | m | 28.7 | |
| Max. Working Radius | m | 25.2 | |
| Rated Load | kg / m | ★ 15,000 / 3.0 | |
| (★: 6S, STD: 4S) | 7,500 / 6.0 | ||
| 4,000 / 9.9 | |||
| 2,500 / 13.7 | |||
| 1,750 / 17.6 | |||
| 1,300 / 21.4 | |||
| 1,000 / 25.3 | |||
| Oil Pump | Rated Oil Flow Volume | L / phút | 113.5 × 113.5 |
| Oil Pressure | kgf / cm² | 210 | |
| Oil Tank Capacity | L | 250 | |
| Booms & Wires | Boom Type / Sections | – | Hexa / 6 |
| Boom Extending Speed | m / giây | 19.2 / 48 | |
| Boom Undulation Speed | deg / giây | 80 / 23 | |
| Wire Rope | – | Ø14 × 100m | |
| Winch Speed | m / phút | 7.5 / 4 lớp | |
| Swing Angle | deg | 360° | |
| Swing Speed | rpm | 2 | |
| Outrigger | Extend Width | Front | Front: 5.36 |
| Rear | Rear: 5.36 | ||
| Outrigger Type | Front | Hydraulic System | |
| Rear | Hydraulic System | ||
| Safety Device | Optional equipment (overload limit, anti-two-block device, warning device, rated capacity indicator) | ||
| Emergency switch, swing brake, load holding valve, pilot-operated check valve. | |||
