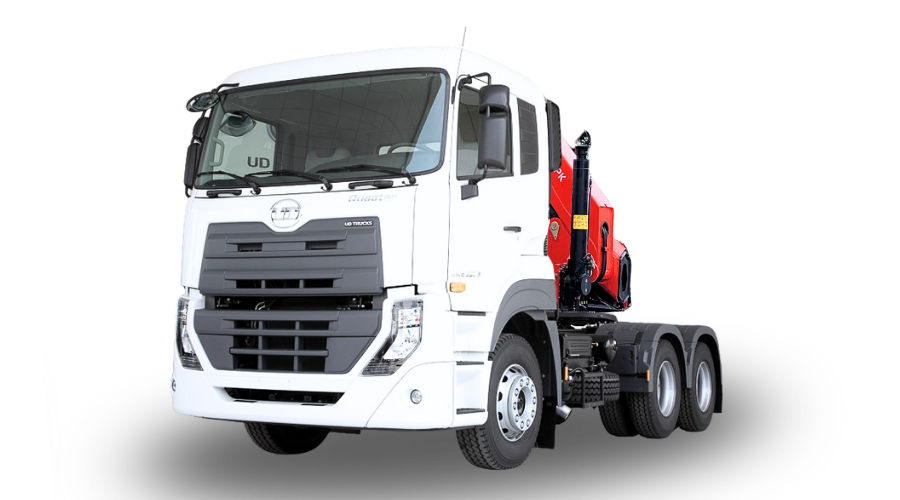

UD TRUCKS GWE64T 08MS 6X4 - 350HP
GH11 410 EU V
3400 + 1370 mm
4 hydraulic boom sections
10000 / 2
960 / 12.3
| Brand | UD TRUCKS |
| Model Code | GWE64T 11MS |
| Origin | Thailand |
| Curb Weight | 8870 kg |
| Max. designed/permitted fifth wheel load | 20000/15000 kg |
| Max. designed/permitted gross vehicle weight | 29000/24000 kg |
| Max. designed/permitted towing weight | 64000/39000 kg |
| Number of passengers allowed, excluding driver | 01 person (01 seat) |
| Overall Dimensions: Length x Width x Height | 7035 x 2500 x 3730 mm |
| Wheel Configuration | 6 x 4 |
| Wheelbase | 3400 + 1370 mm |
| Front Wheel Track | 2026 mm |
| Rear Wheel Track | 1835 mm |
| Engine Code, Type | GH11 410 EU V, 4-stroke, 6 cylinders in-line, turbocharged |
| Fuel Type | Diesel |
| Displacement | 10837 cm3 |
| Max. Engine Power / Rotational Speed | 308/1800 kW/rpm |
| Axle 1 Tires | 02 Tires; 315/80R22.5 |
| Axle 2 Tires | 04 Tires; 315/80R22.5 |
| Axle 3 Tires | 04 Tires; 315/80R22.5 |
| Special Equipment | Fifth wheel with locking mechanism, brand JOST, model JSK 37C |
| Basic Specifications | SPK23500C |
|---|---|
| Max. Lifting Moment [mt] | 23.0 |
| Max. Lifting Capacity (kg) at (m) | 10,000 / 2 |
| Max. Hydraulic Outreach [m] | 12.3 |
| Max. Outreach Lifting Capacity [kg] | 960 |
| Number of Hydraulic Boom Sections | 4 |
| Slewing Angle [°] | 400 |
| Std. Stabilizer Spread [mm] | 5640 |
| Folded Crane Dimensions [mm] | 2500 |
| Max. Operating Pressure [bar] | 300 |
| Recommended Pump Capacity [l/min] | 50 – 75 |
| Crane Dead Weight including outriggers [kg] | 2346 |
HD paint on folding crane with high-quality surface coating and superior corrosion resistance
Durable UV-resistant coating. Aesthetic and attractive colors
Radio remote control for folding crane: efficient control, ensuring safe operation from outside the danger zone
Easy maintenance, quick troubleshooting
Ergonomic crane control levers are logically arranged for all crane functions
Functional design ensures more convenient operation during control
Easy to maintain and service
OSK feature on folding crane:
Automatically locks operation when the crane reaches the maximum load limit.
Prevents unintentional overloading during operation.
Ensures the equipment always operates within a safe load range, enhancing durability and working performance.
| Brand | UD TRUCKS |
| Model Code | GWE64T 11MS |
| Origin | Thailand |
| Curb Weight | 8870 kg |
| Max. designed/permitted fifth wheel load | 20000/15000 kg |
| Max. designed/permitted gross vehicle weight | 29000/24000 kg |
| Max. designed/permitted towing weight | 64000/39000 kg |
| Number of passengers allowed, excluding driver | 01 person (01 seat) |
| Overall Dimensions: Length x Width x Height | 7035 x 2500 x 3730 mm |
| Wheel Configuration | 6 x 4 |
| Wheelbase | 3400 + 1370 mm |
| Front Wheel Track | 2026 mm |
| Rear Wheel Track | 1835 mm |
| Engine Code, Type | GH11 410 EU V, 4-stroke, 6 cylinders in-line, turbocharged |
| Fuel Type | Diesel |
| Displacement | 10837 cm3 |
| Max. Engine Power / Rotational Speed | 308/1800 kW/rpm |
| Axle 1 Tires | 02 Tires; 315/80R22.5 |
| Axle 2 Tires | 04 Tires; 315/80R22.5 |
| Axle 3 Tires | 04 Tires; 315/80R22.5 |
| Special Equipment | Fifth wheel with locking mechanism, brand JOST, model JSK 37C |
| Basic Specifications | SPK23500C |
|---|---|
| Max. Lifting Moment [mt] | 23.0 |
| Max. Lifting Capacity (kg) at (m) | 10,000 / 2 |
| Max. Hydraulic Outreach [m] | 12.3 |
| Max. Outreach Lifting Capacity [kg] | 960 |
| Number of Hydraulic Boom Sections | 4 |
| Slewing Angle [°] | 400 |
| Std. Stabilizer Spread [mm] | 5640 |
| Folded Crane Dimensions [mm] | 2500 |
| Max. Operating Pressure [bar] | 300 |
| Recommended Pump Capacity [l/min] | 50 – 75 |
| Crane Dead Weight including outriggers [kg] | 2346 |
