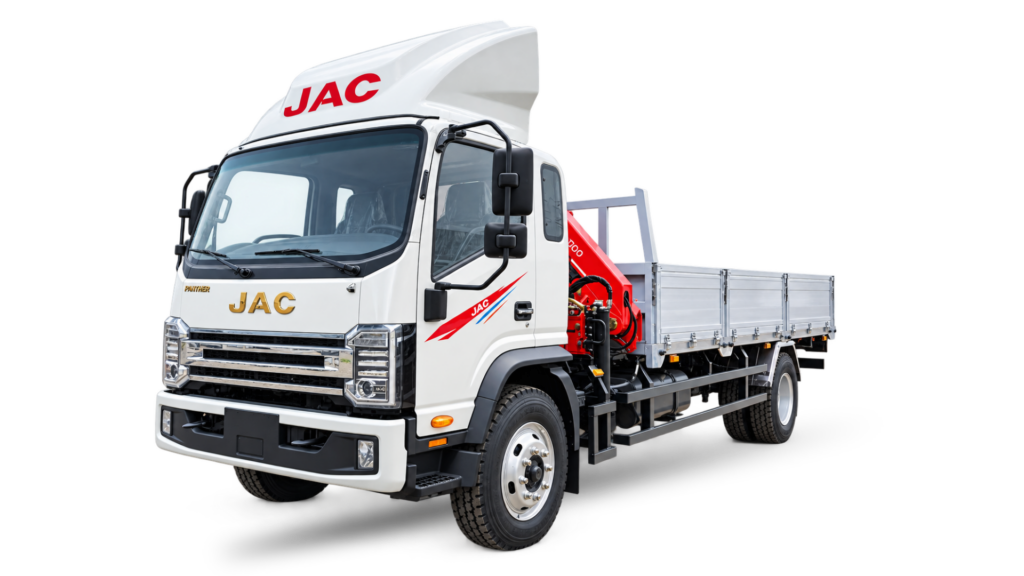

JAC N900 PLUS E5 4x2
B4.5EV210 - EURO 5
5700 mm
3 hydraulic boom sections
3300 / 2
720 / 9.6
| Type | Chassis Cab Truck |
| Brand | JAC |
| Model Code | N900 PLUS E5 |
| Curb Weight | 4330 kg |
| Curb Weight Distribution on Axles | 2530 / 1800 kg |
| Number of Permitted Passengers, including Driver | 3 |
| Max. Design/Permitted Gross Vehicle Weight | 15150 / — kg |
| Vehicle Dimensions (Length x Width x Height) | 9760 x 2360 x 3360 mm |
| Number of Axles | 2 |
| Wheelbase | 5700 mm |
| Wheel Formula | 4 x 2 |
| Axle Track | 1920 / 1805 mm |
| Engine Code, Type | B4.5EV210, 4-stroke, 4-cylinder in-line, turbocharged |
| Max. Power/Rotational Speed | 154 kW at 2300 rpm |
| Fuel Type | Diesel |
| Displacement | 4460 cm³ |
| Number, Tyre Size | Axle 1: 02; 8.25R20Axle 2: 04; 8.25R20 |
| Steering System | Worm gear – ball nut; Mechanical, hydraulic power-assisted |
| Main Brake System | Drum / Drum; Air pressure |
| Parking Brake System | Drum; Axle 2 wheels; Air pressure + Spring accumulator in brake chamber |
| Note | Max. design weight permitted for front/rear axle group: 5150/10000 kg |
| Basic Specifications | SPK8500B |
| Max. Lifting Moment [mt] | 7.6 |
| Max. Lifting Capacity (kg) at (m) | 3300 / 2 |
| Max. Hydraulic Outreach [m] | 9.6 |
| Max. Outreach Lifting Capacity [kg] | 720 |
| Number of Extension Boom | 3 |
| Slewing Angle [°] | 400 |
| Std. Stabilizer Spread [mm] | 4870 |
| Folded Crane Dimensions LxWxH [mm] | 2280 x 660 x 1996 |
| Max. Operating Pressure [bar] | 315 |
| Recommended Pump Capacity [l/min] | 25–35 |
| Crane Dead Weight including outriggers [kg] | 1063 |
HD paint on folding crane with high-quality surface coating and superior corrosion resistance
Durable UV-resistant coating. Aesthetic and attractive colors
Radio remote control for folding crane: efficient control, enabling safe operation from outside hazardous areas
Easy maintenance, quick troubleshooting
Ergonomic crane control levers are logically arranged for all crane functions
Functional design ensures more convenient operation during control
Easy to maintain and service
