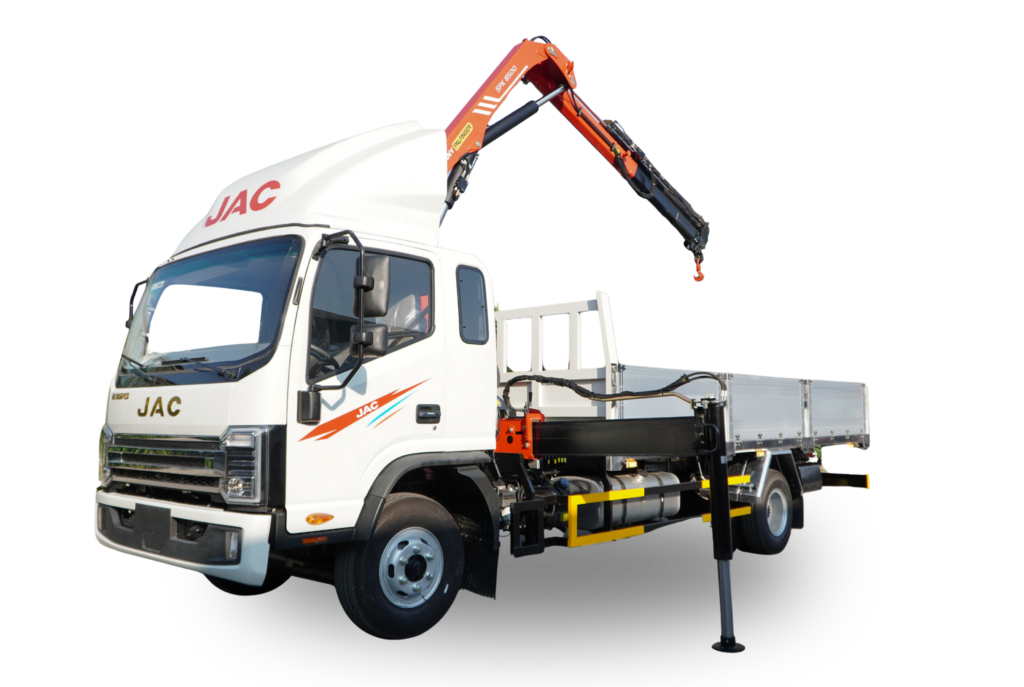

JAC N750 PLUS E5A 4x2
YC4S170-50 - EURO 5
4700 mm
3 hydraulic boom sections
3300 / 2
720 / 9.6
| Vehicle Type | Truck Chassis |
| Brand | JAC |
| Model Code | N750 PLUS E5A |
| Curb Weight | 3720 kg |
| Curb Weight Distribution on Axles | 2225 / 1495 kg |
| Seating Capacity (excluding driver) | 2 |
| Max. Design/Permissible Gross Vehicle Weight | 12600 / — kg |
| Overall Dimensions (Length x Width x Height) | 8325 x 2200 x 3200 mm |
| Number of Axles | 2 |
| Wheelbase | 4700 mm |
| Wheel Formula | 4 x 2 |
| Axle Track | 1680 / 1690 mm |
| Engine Code, Type | YC4S170-50; 4-stroke, 4-cylinder in-line, turbocharged |
| Max. Power/Rotational Speed | 125 kW at 2600 rpm |
| Fuel Type | Diesel |
| Displacement | 3767 cm³ |
| Number, Tyre Size | Axle 1: 02; 8.25-16Axle 2: 04; 8.25-16 |
| Steering System | Worm and nut; Mechanical, hydraulic power-assisted |
| Main Braking System | Drum / Drum; Air |
| Parking Brake System | Drum; Axle 2 wheels; Air + Spring brake at brake chamber |
| Note | Max. design permissible weight distribution on front/rear axle group: 4000/8720 kg |
| Basic Specifications | SPK8500B |
| Max. Lifting Moment [mt] | 7.6 |
| Max. Lifting Capacity (kg) at (m) | 3300 / 2 |
| Max. Hydraulic Outreach [m] | 9.6 |
| Max. Outreach Lifting Capacity [kg] | 720 |
| Number of Extension Boom | 3 |
| Slewing Angle [°] | 400 |
| Std. Stabilizer Spread [mm] | 4870 |
| Folded Crane Dimensions LxWxH [mm] | 2280 x 660 x 1996 |
| Max. Operating Pressure [bar] | 315 |
| Recommended Pump Capacity [l/min] | 25–35 |
| Crane Dead Weight including outriggers [kg] | 1063 |
HD paint on folding crane with high-quality surface coating and excellent corrosion resistance
Durable UV-resistant coating. Aesthetic and attractive colors
Radio remote control for folding crane: efficient control, enabling safe operation from outside the danger zone
Easy maintenance, quick troubleshooting
Ergonomic crane control levers are logically arranged for all crane functions
Functional design provides more convenient operation during control
Easy to maintain and service
