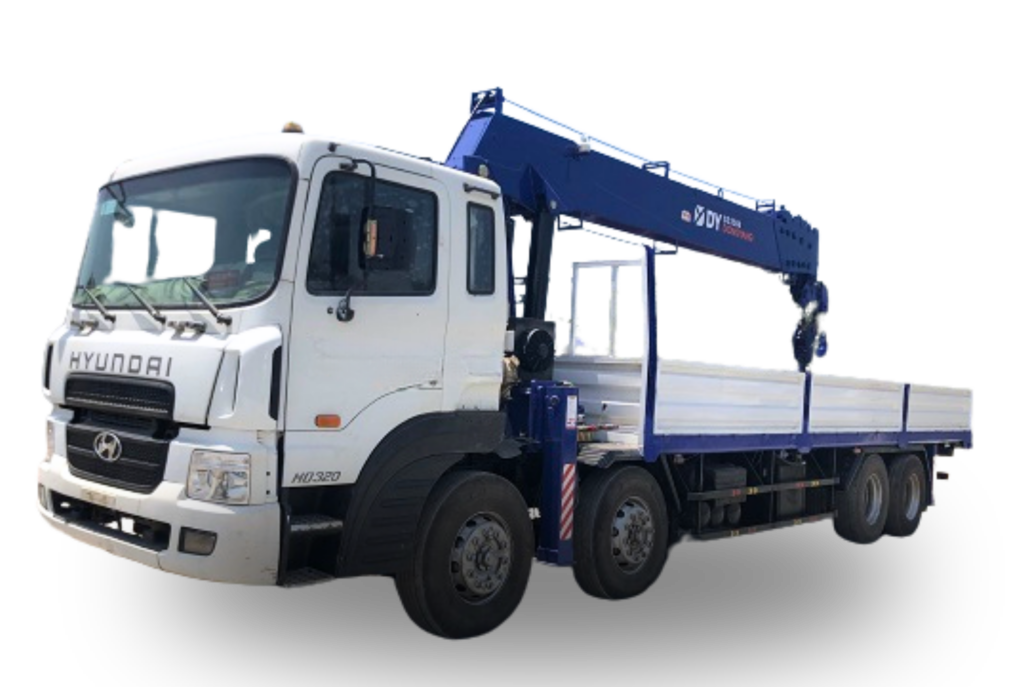

HYUNDAI HD320 8x4 WKYRHEZHAVT3
D6HA - EURO 5
12390 x 2495 x 3140 mm
5 boom sections
| Item | Content |
| Brand | HYUNDAI |
| Model | WKYRHEZHAVT3 |
| Commercial Name | HD320 |
| Curb weight | 10400 kg |
| Max. design gross vehicle weight / Max. permissible gross vehicle weight | 37700 / 34000 kg |
| Permissible passenger capacity, excluding driver | 1 |
| Overall Dimensions (Length x Width x Height) | 12390 x 2495 x 3140 mm |
| Wheel configuration | 8 x 4 |
| Wheelbase | 1700 + 4850 + 1300 mm |
| Front track width | 2060 mm |
| Rear track width | 1850 mm |
| Engine code, type | D6HA, 4-stroke, 6-cylinder in-line, turbocharged |
| Fuel type | Diesel |
| Displacement | 9960 cm³ |
| Max power / rpm | 280 kW at 1900 rpm |
| Tire axle 1 | 02 tires; 12R22.5 |
| Tire axle 2 | 04 tires; 12R22.5 |
| Tire axle 3 | 04 tires; 12R22.5 |
| Tire axle 4 | 04 tires; 12R22.5 |
| Category | Description | Unit | SS2725LB |
| Capacity | Max. Lifting Capacity | kg.m | 29,000 |
| Max. Working Height | m | 23.2 | |
| Max. Working Radius | m | 20.2 | |
| Rated Load | kg / m | ★12,000 / 2.0 | |
| (★: 6S, STD: 4S) | 5,500 / 5.4 | ||
| 2,900 / 9.1 | |||
| 1,850 / 12.3 | |||
| 1,250 / 16.2 | |||
| 950 / 20.2 | |||
| Oil Pump | Rated Oil Flow Volume | L / phút | 51 |
| Oil Pressure | kgf / cm² | 210 | |
| Oil Tank Capacity | L | 200 | |
| Booms & Wires | Boom Type / Sections | Hexa Boom / 5 sections | |
| Boom Extending Speed | m / giây | 14.8 / 35 | |
| Boom Undulation Speed | độ / giây | 78 / 18 | |
| Wire Rope | Φ10 × 100m | ||
| Winch Speed | m / phút | 7.5 / 4 lớp | |
| Swing Angle | độ | 360° | |
| Swing Speed | rpm | 2.5 | |
| Outrigger | Extend Width | Front | 6.2 |
| Rear | 5.36 | ||
| Outrigger Type | Front | Hydraulic System | |
| Rear | Hydraulic System | ||
| Safety Device | Optional equipment: Overload limit, Anti-two-block device, Warning device, Hook stopper Emergency switch, Swing brake, Winch brake, Hydraulic counterbalance valve, Control valve |
||
