Tilt cabin, electric lifting, with automatic air conditioning system, electric windows.
SINOTRUK D10.38-50
280 kW at 2200 rpm
HFVGD95 (Load capacity 9,500kg)
MCP16ZG (Load capacity 16,000kg, gear ratio 5.26)
Dump Body: 29.3 m3
9300 x 2500 x 3680
19550
| TECHNICAL SPECIFICATIONS / SPECIFICATION | |
| VEHICLE TYPE | 8X4 SQUARE DUMP TRUCK |
| Manufacturing Year | 2025 |
| Condition | 100% New |
| Vehicle Type | 8×4 Dump Truck |
| Brand | CNHTC |
| Model Number | ZZ3317N3267E1-HC |
| DIMENSIONS & WEIGHT | |
| Overall Dimensions (mm) | 9300 x 2500 x 3680 |
| Wheelbase (mm) | 1800+3200+1350 |
| Curb Weight (kg) | 19550 |
| Max. Designed Payload / Max. Permitted Payload (kg) | 29000 |
| Permitted Seating Capacity (including driver) | 2 |
| Max. Designed Gross Vehicle Weight / Max. Permitted Gross Vehicle Weight (kg) | 48680 |
| ENGINE | |
| Model | D10.38-50 |
| Fuel, Cylinders, Cooling | Diesel, 4-stroke, 6-cylinder in-line, water-cooled, turbocharged |
| Max. Power (kW) / RPM | 280 kW at 2200 rpm |
| Max. Torque (N.m) / Rotation Speed (rpm) | 1,560/1,200÷1,500 |
| DRIVETRAIN AND TRANSMISSION SYSTEM | |
| Gearbox | Model: HW19712 (Mechanical, 2-speed gearbox with 12 forward + 02 reverse gears, mechanical drive, 1,900 N.m torque) |
| Front Axle | HFVGD95 (Permitted load 9,500kg) |
| Rear Axle | MCP16ZG (Permitted load 16,000kg, gear ratio 5.26) |
| TIRES | |
| Tyre Size | 12.00-20 (24PR) |
| SUSPENSION SYSTEM | |
| Leaf Spring System | Front Leaf Springs: 11 leaves, 17mm thickness, 90mm width |
| Rear Leaf Springs: 12 leaves, 25mm thickness, 90mm width | |
| STEERING SYSTEM | |
| Type | BOSCH Hydraulic Power Steering |
| BRAKING SYSTEM | |
| Service Brake | Dual-circuit Air Brake |
| Parking Brake (Emergency Brake) | Spring Brake, Pneumatic on Rear Wheels |
| Auxiliary Brake | Engine Exhaust Brake |
| CHASSIS FRAME | |
| Material | High-strength Steel |
| Section Dimensions (mm) | Double layer 300x80x(8+8) |
| Permitted Load Capacity (kg) | 51000 |
| CABIN | |
| Type | Tilt cabin, electric lifting, with automatic air conditioning system, electric windows. |
| CARGO BODY | |
| Body Type | Dump |
| Inner Body Dimensions (LxWxH) (mm); Body Capacity (m3) | 6,500/6375 x 2,300/2050 x 2,000; body capacity 29.3 m3 |
| Specifications | Body bottom 10mm thick steel, side walls 8mm thick, high-strength steel, square dump body type. |
| HYDRAULIC SYSTEM | |
| Hydraulic Cylinder | HYVA 179 chrome-plated |
| INCLUDED ACCESSORIES | |
| Spare Tire | Yes (01 tire 12.00-20) |
| Fuel Tank | 400 liters aluminum alloy |
| Battery | 2 x 24V x 165Ah |
| Manufacturer’s Standard Repair Tool Kit | Yes |

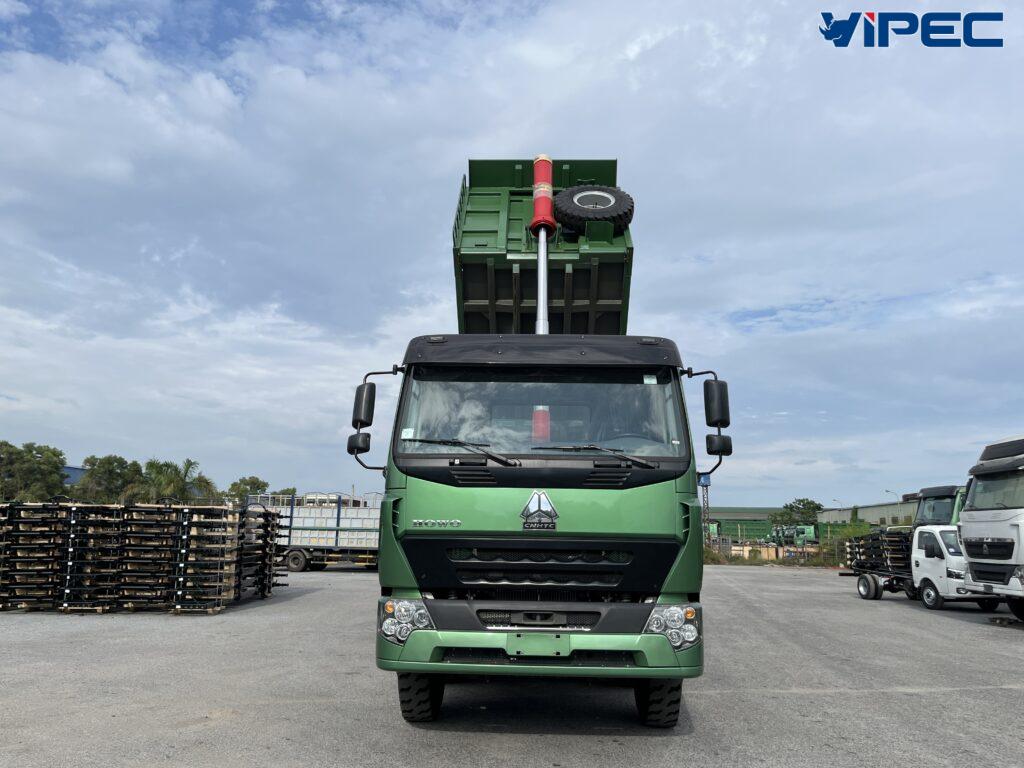

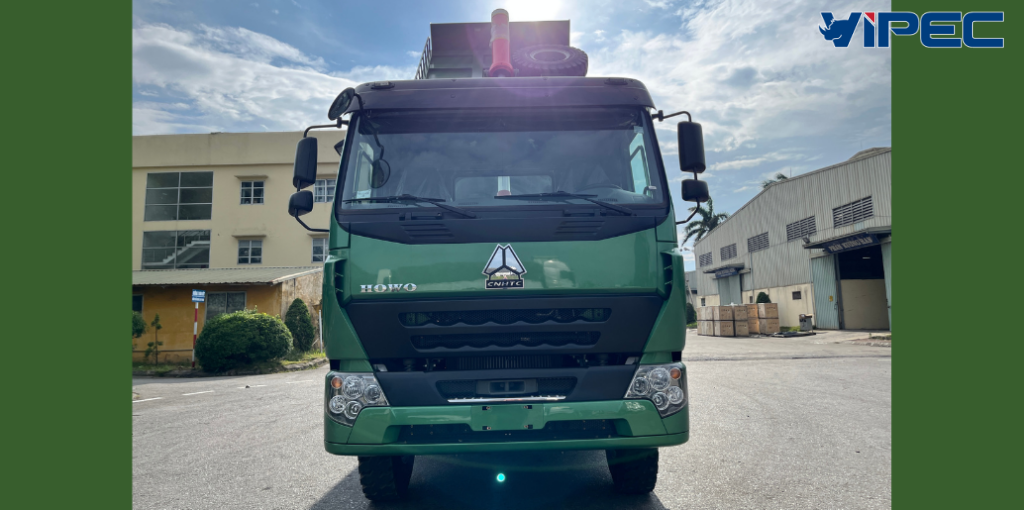

The grille is designed with robust, strong horizontal bars, giving the vehicle an aggressive look.

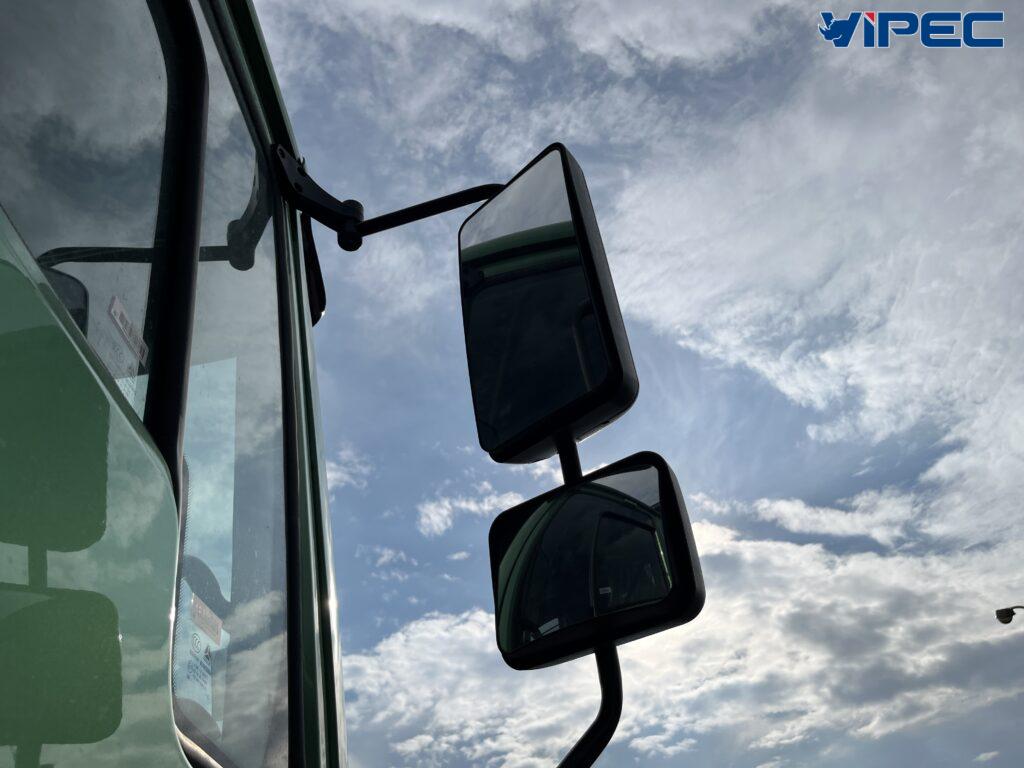

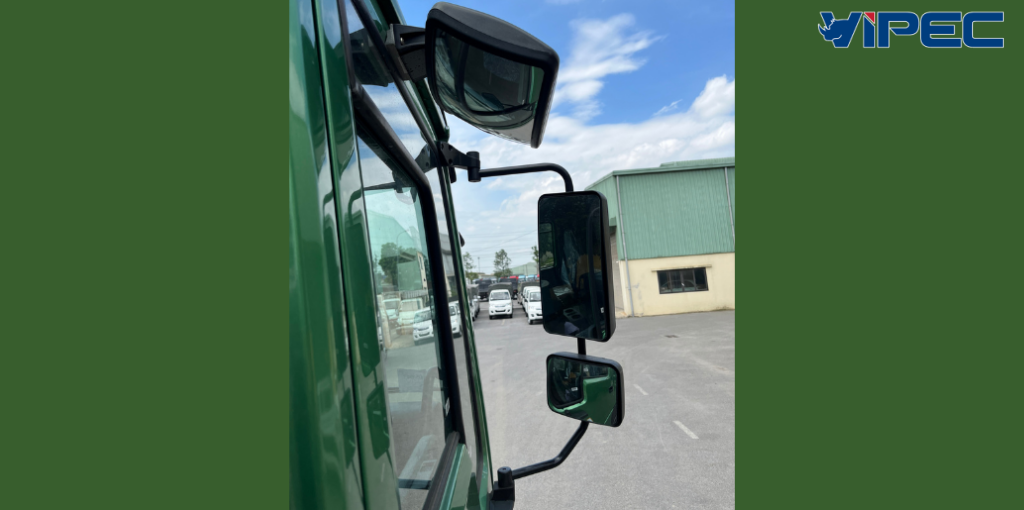

A cluster of 3 rearview mirrors enhances visibility and reduces blind spots.

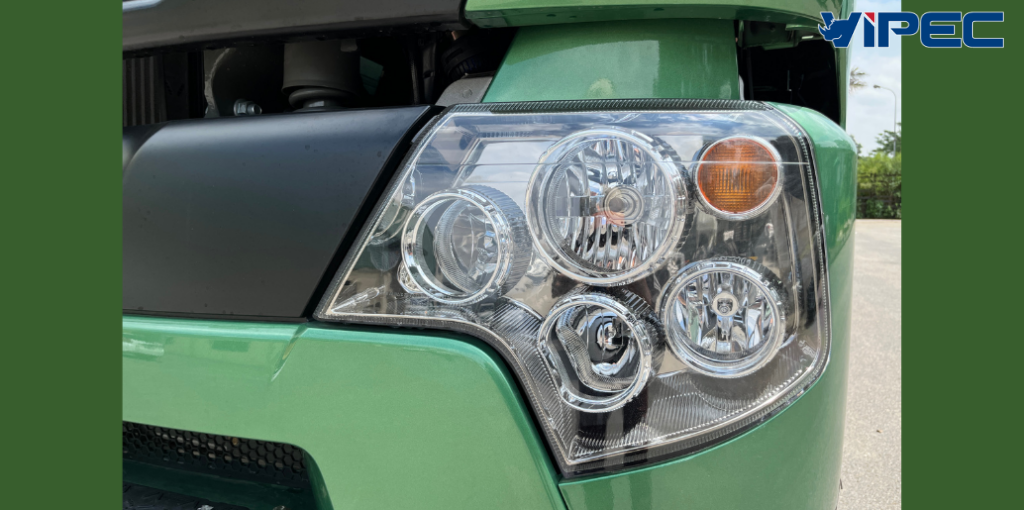

The halogen headlights are designed in a more modern, refined honeycomb shape for better illumination, reduced vibration, and longer visibility in low-light conditions. Durability and low, easily replaceable cost are advantages of this type of light.

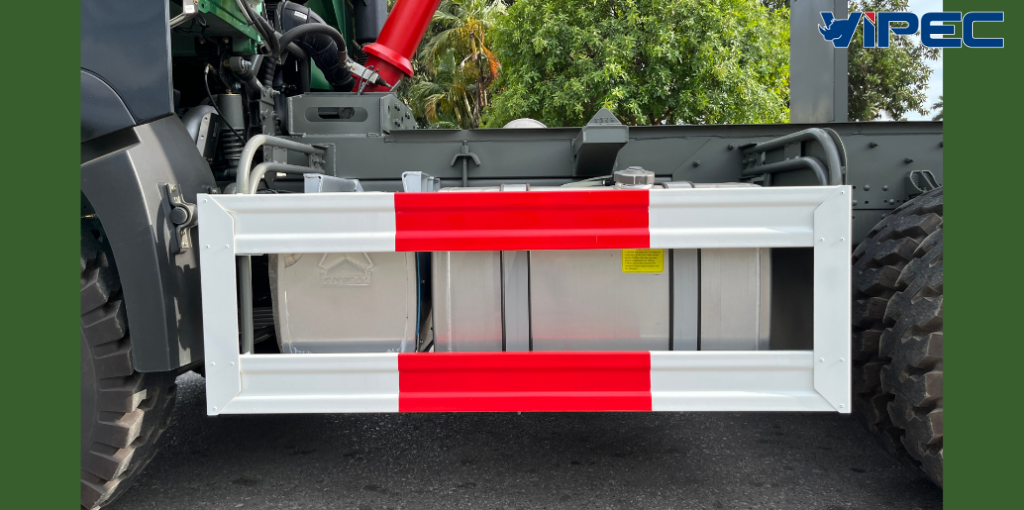

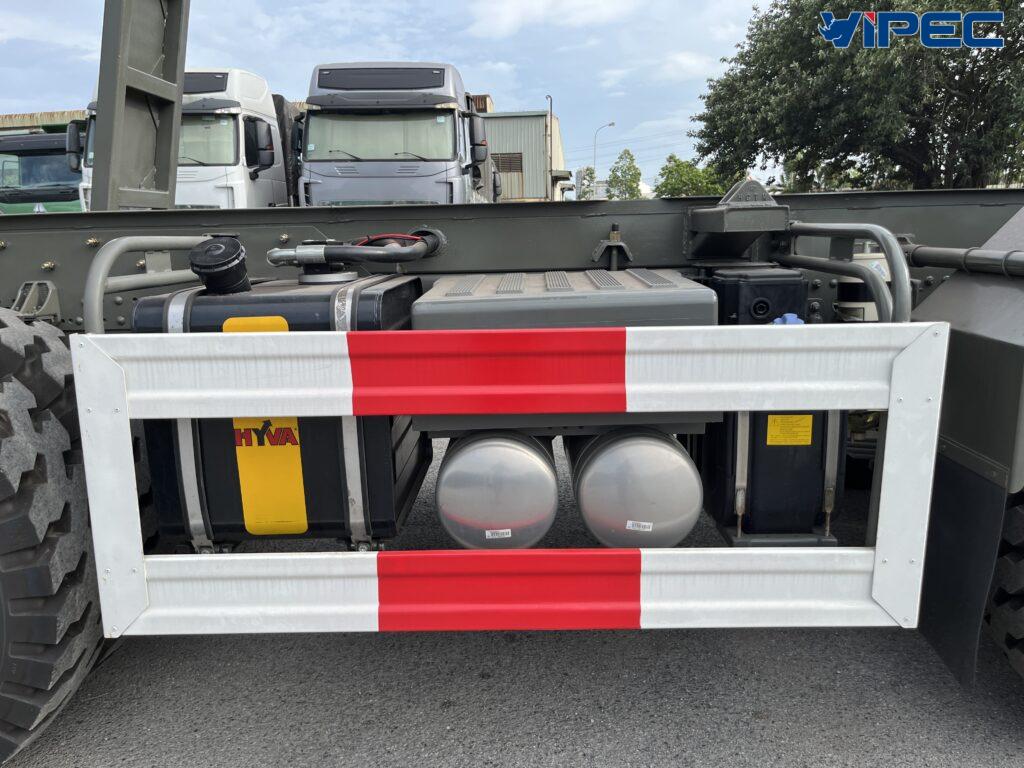

Fuel tank with 400L capacity, made of aluminum alloy.

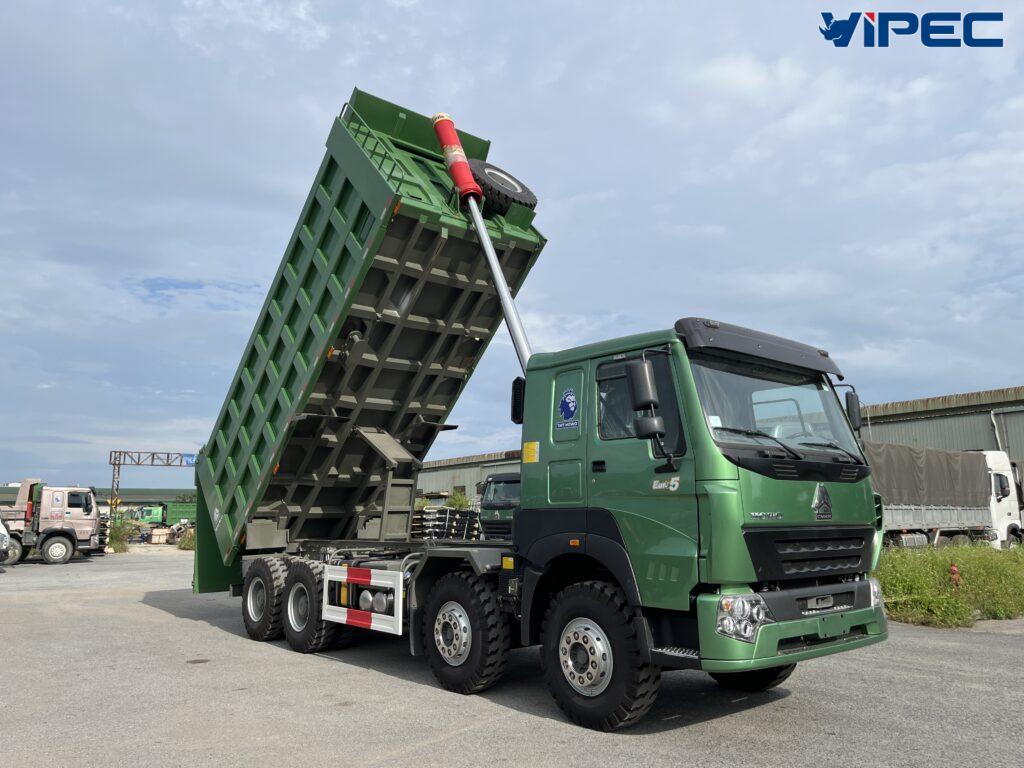

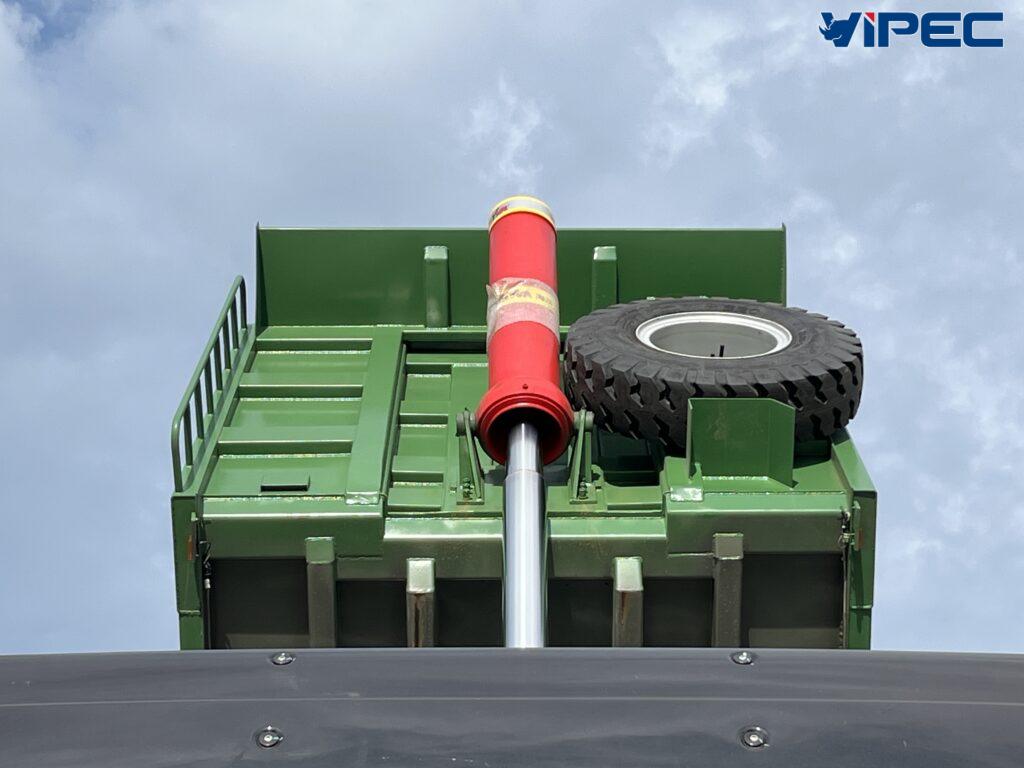

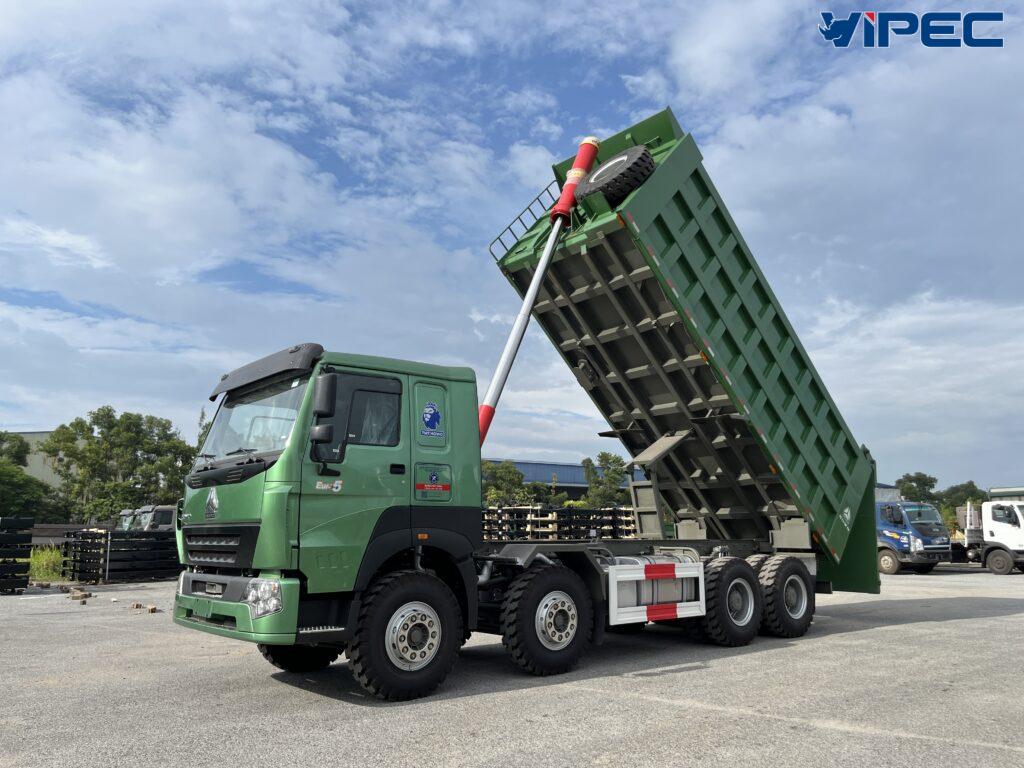

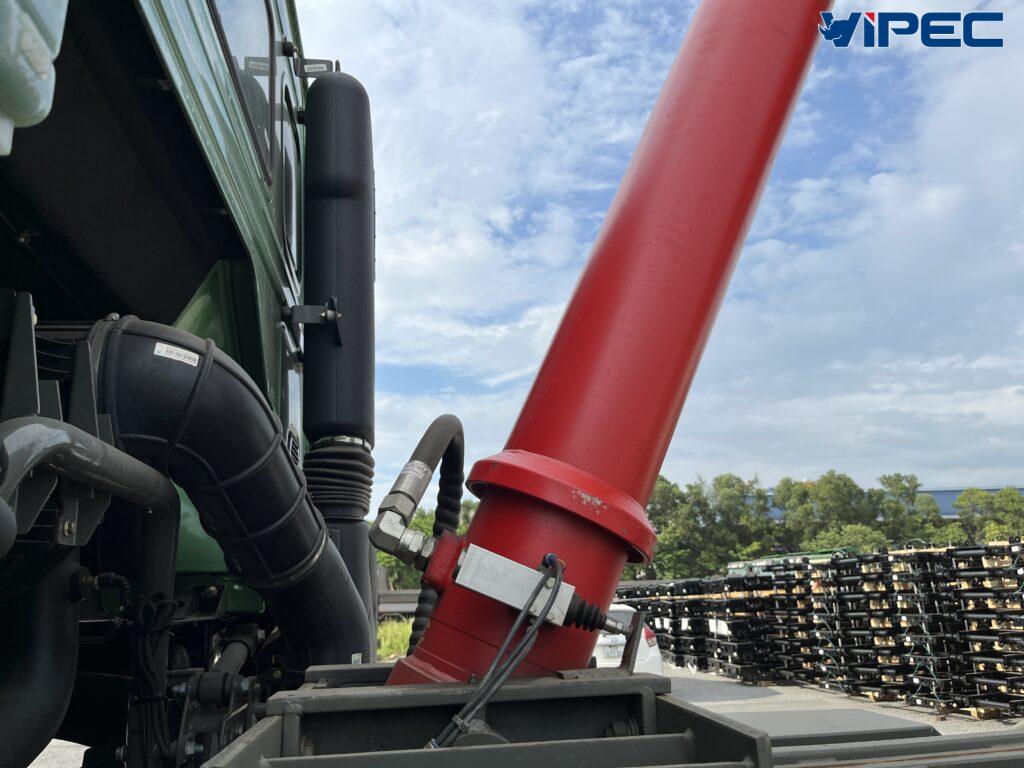

Equipped with the largest HYVA tipping cylinder in the heavy-duty truck segment, ensuring stability during lifting and dumping. Tipping cylinder diameter: 179 mm.

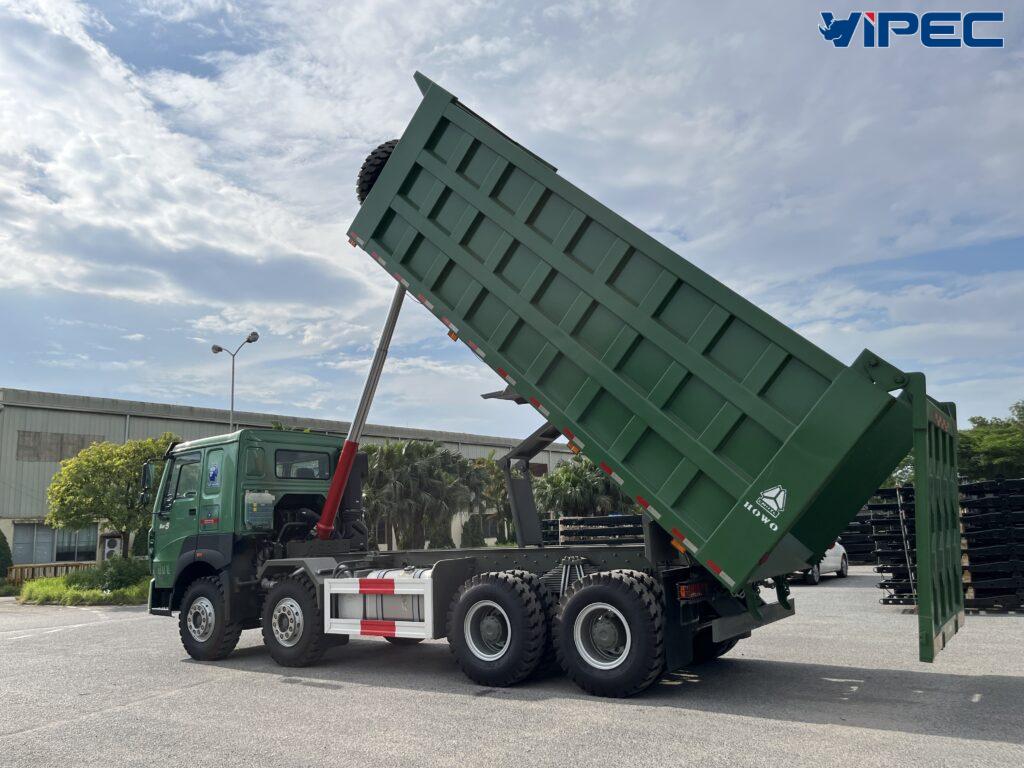

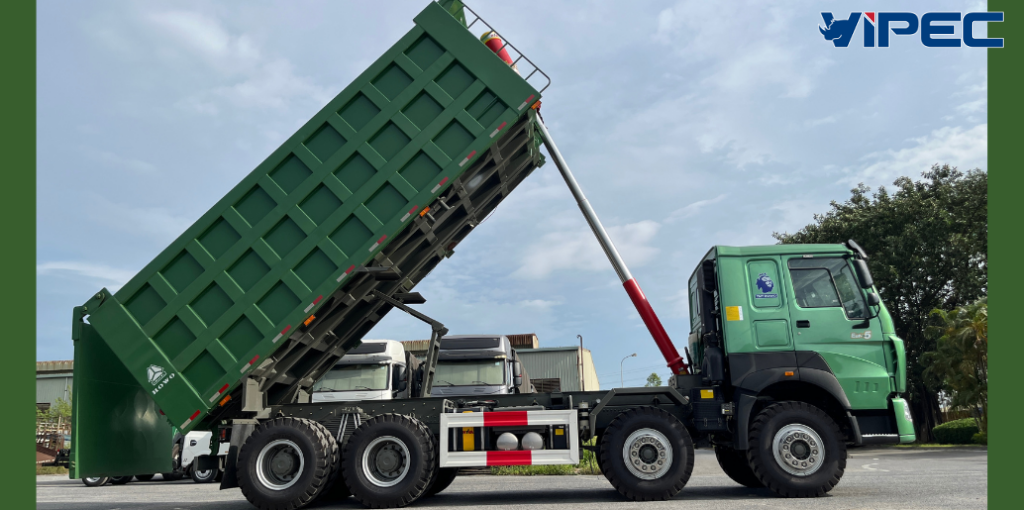

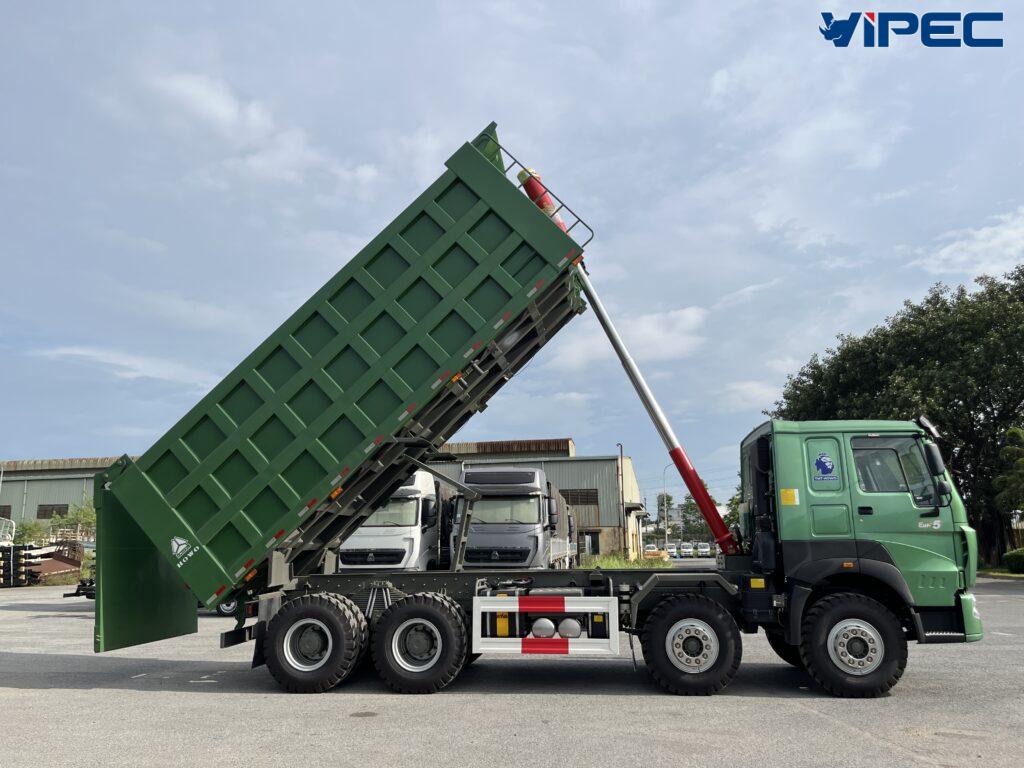

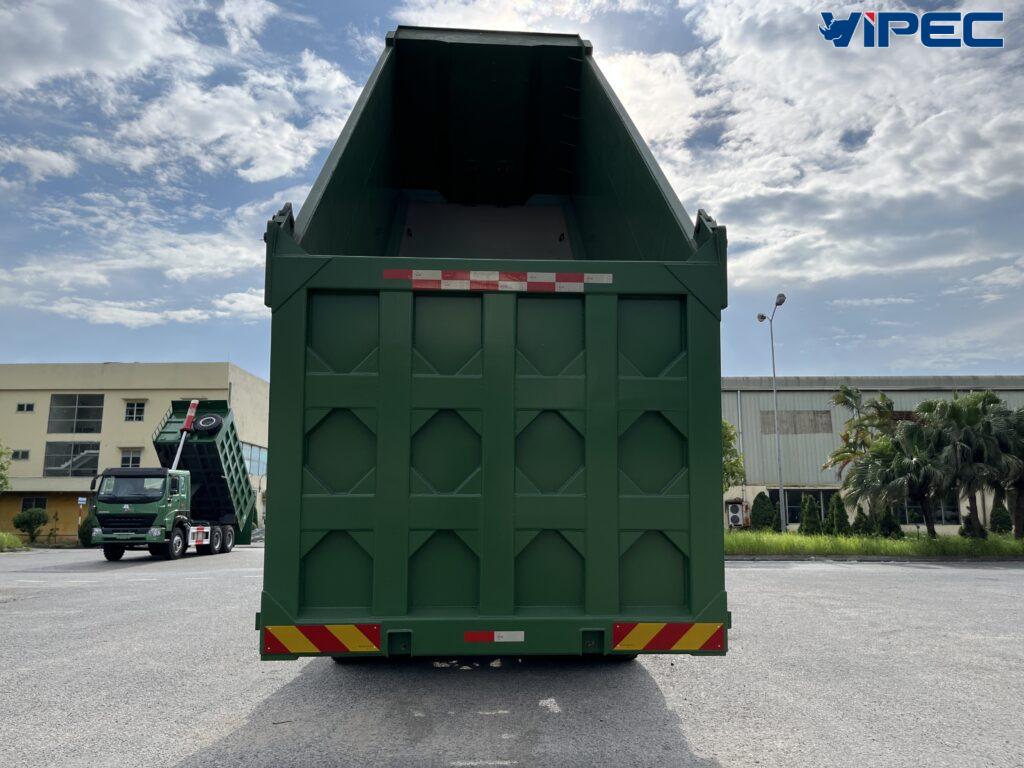

Vehicle body: Body bottom 10mm thick, side walls 8mm thick, constructed from high-strength steel, square dump body type. Inner body volume 29.3 m3

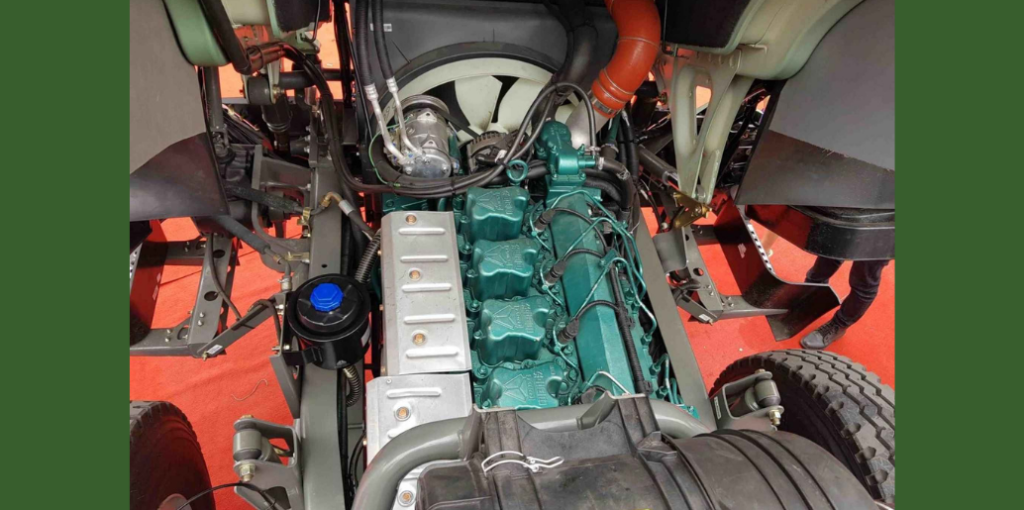

The Howo 4-axle dump truck uses a D10.38-50 4-stroke, 6-cylinder inline turbocharged, water-cooled diesel engine with a displacement of 9,726 cm3, delivering a maximum power of 380 HP. This provides powerful and robust performance on complex mountain roads. The engine meets Euro 5 emission standards, making it environmentally friendly and fully compliant with the Vietnamese vehicle emission regulations.

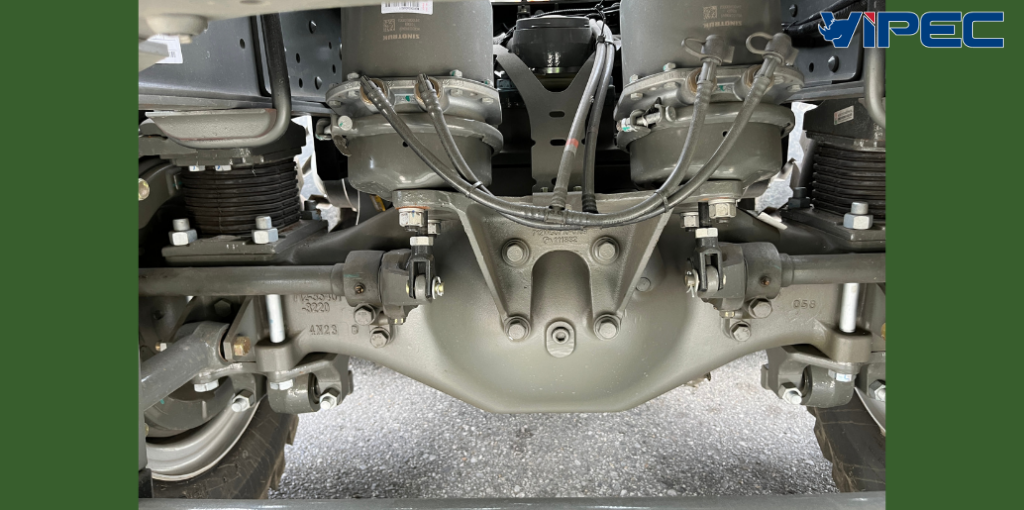

The vehicle uses a gearbox with 12 forward gears and 2 reverse gears, with a two-stage paddle shifter on the gear lever for convenient gear changes. The synchronized gears allow for smooth and effortless shifting. The front axle is an HFVGD95, and the rear axle is an MCP16ZG with a load capacity of 16 tons, providing superior load-carrying and overload capabilities. It is highly efficient and flexible in navigating rough terrain, muddy roads, and construction sites or mining operations.

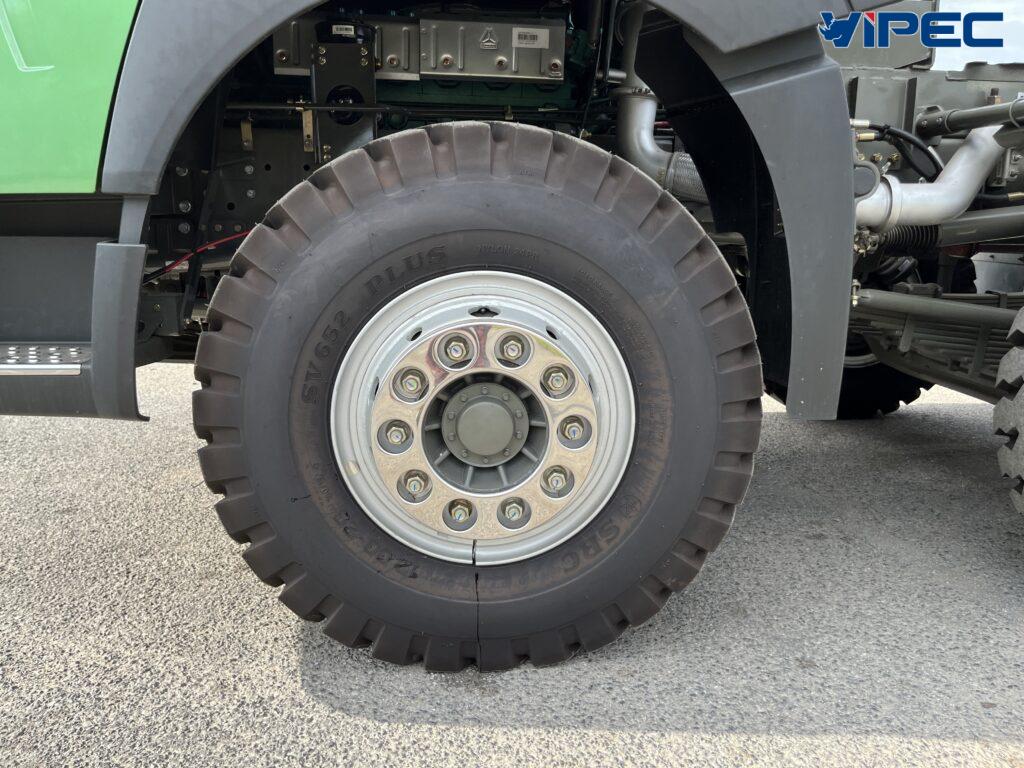

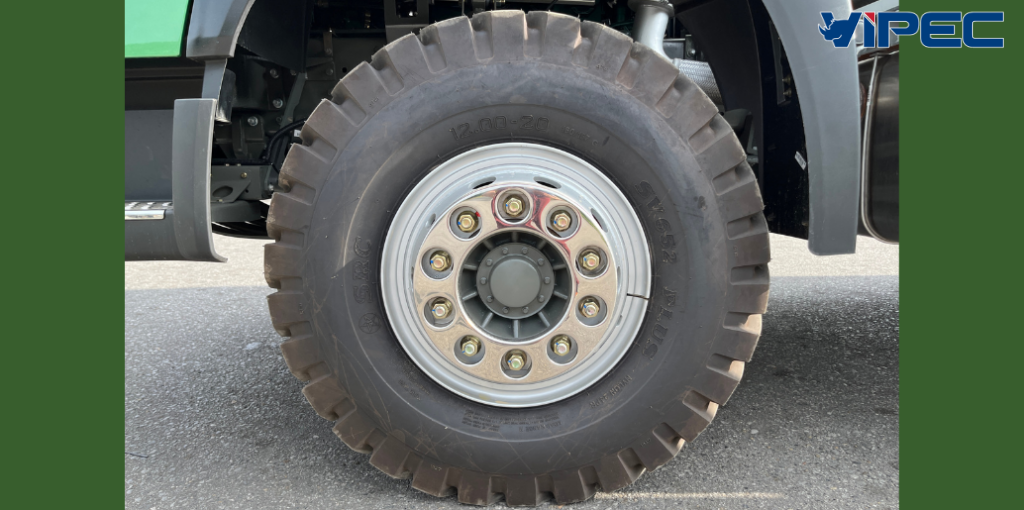

The vehicle is equipped with standard tube tires from Triangle brand, size 12.00-20 (24PR), steel-belted, with high friction.

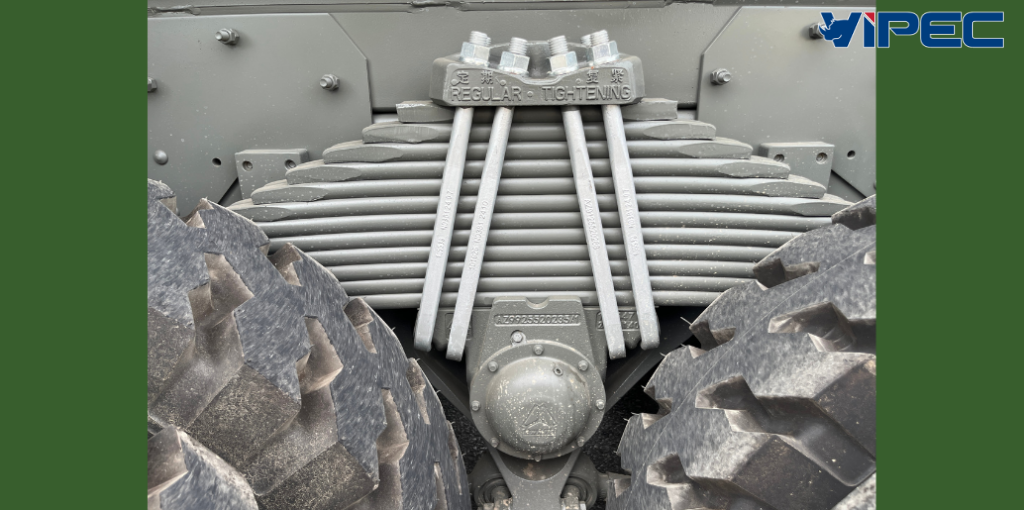

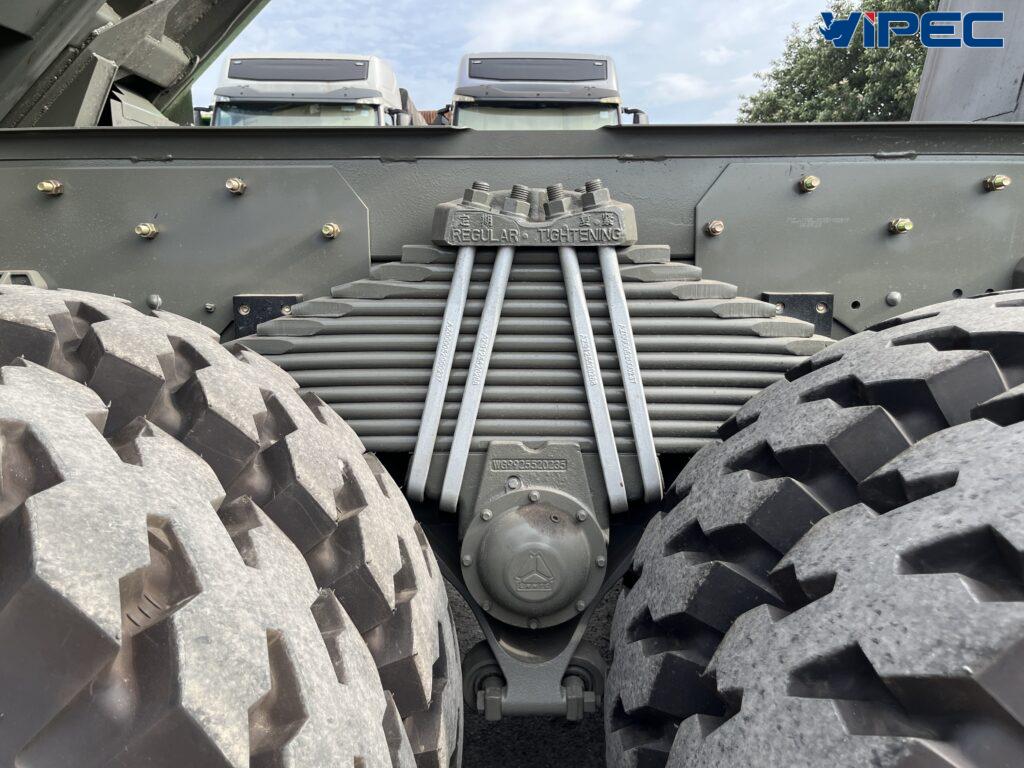

The fuel tank uses a 400L aluminum tank, which is aesthetically pleasing and has a large capacity, allowing drivers more autonomy on their trips, especially in remote mining areas. The leaf spring system is equipped with very thick and sturdy 11-leaf front springs and 12-leaf rear springs, providing good load capacity.

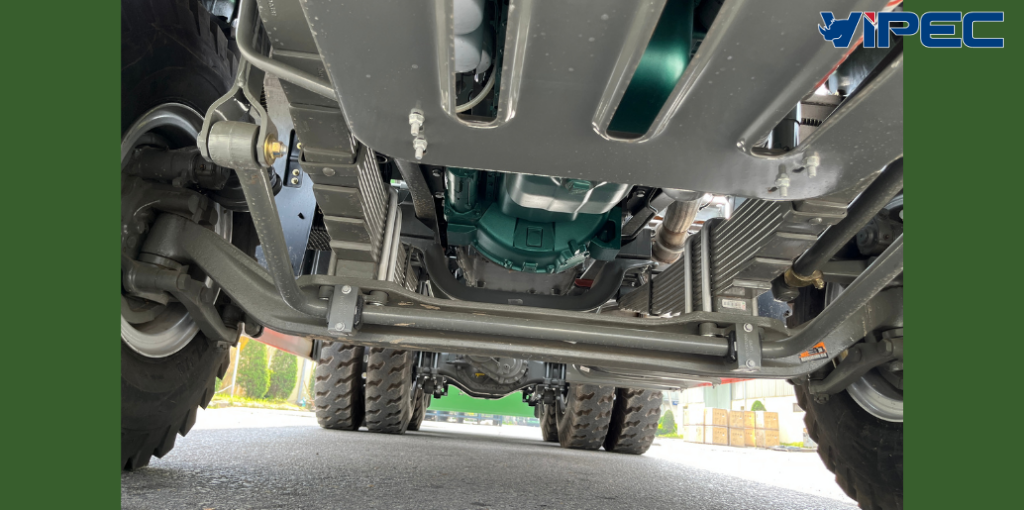

Double-layer chassis frame 300x80x(8+8)mm, load capacity up to 51 tons.

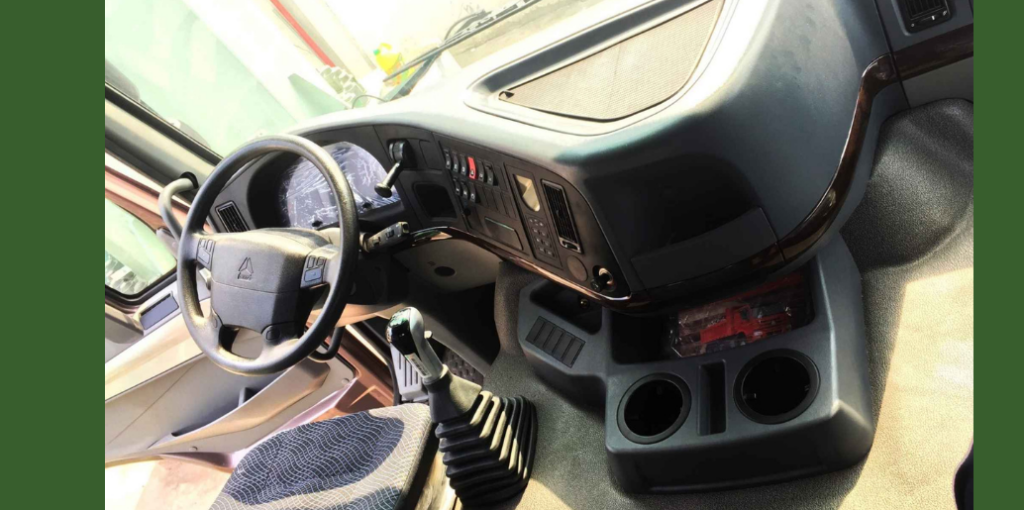

The vehicle features a simple yet sophisticated and well-equipped interior. The steering wheel is designed to fit the physique of Vietnamese people perfectly and is adjustable in three directions for convenient driving. The vehicle uses air-cushioned seats for a smoother ride on challenging roads. It also includes a sleeping berth, allowing drivers to rest after long and tiring journeys.
