Tilting cabin, electric lift, with automatic air conditioning system, electric windows.
SINOTRUK D10.38-50
280 kW at 2200 rpm
HFVGD95 (Capacity 9,500kg)
MCP16ZG (Capacity 16,000kg, gear ratio 5.26)
Dump box: 22.6 m3
7800 x 2500 x 3610
16530
| TECHNICAL SPECIFICATIONS/ SPECIFICATION | |
| Vehicle Type | 6X4 SQUARE BOX DUMP TRUCK |
| Year of Manufacture | 2025 |
| Condition | 100% New |
| Vehicle Type | 6×4 Dump Truck |
| Brand | CNHTC |
| Model Number | ZZ3257N3447E1-HC |
| DIMENSIONS & WEIGHT | |
| Overall Dimensions (mm) | 7800 x 2500 x 3610 |
| Wheelbase (mm) | 3425+1350 |
| Curb Weight (kg) | 16530 |
| Max. Design Payload / Max. Permissible Payload (kg) | 23500 |
| Number of Permitted Passengers including Driver (persons) | 2 |
| Max. Design Gross Vehicle Weight / Max. Permissible Gross Vehicle Weight (kg) | 40160 |
| ENGINE | |
| Model | D10.38-50 |
| Fuel, Cylinders, Cooling | Diesel, 4-stroke, 6-cylinder in-line, water-cooled, turbocharged |
| Max. Power (kW)/Revolutions (rpm) | 280 kW at 2200 rpm |
| Max. Torque (N.m)/ Swing Speed (rpm) | 1.560/1.200÷1.500 |
| POWER TRANSMISSION SYSTEM | |
| Gearbox | Model: HW19712 (Mechanical, 2-speed gearbox with 12 forward + 02 reverse gears, mechanical drive, torque 1,900 N.m) |
| Front Axle | HFVGD95 (Permissible load 9,500kg) |
| Rear Axle | MCP16ZG (Permissible load 16,000kg, gear ratio 5.26) |
| TIRES | |
| Tyre Size | 12.00-20 (24PR) |
| SUSPENSION SYSTEM | |
| Leaf Spring System | Front springs: 10 leaves, 17mm thick, 90mm wide |
| Rear springs: 12 leaves, 25mm thick, 90mm wide | |
| STEERING SYSTEM | |
| Type | BOSCH Hydraulic Power Steering |
| BRAKING SYSTEM | |
| Service Brake | Dual-circuit Air Brake |
| Parking Brake (Emergency Brake) | Spring brake, air-operated on rear wheels |
| Auxiliary Brake | Engine Exhaust Brake |
| CHASSIS FRAME | |
| Material | High-strength Steel |
| Section Dimensions (mm) | Double layer 300x80x(8+8) |
| Permissible Load Capacity (kg) | 41500 |
| CABIN | |
| Type | Tilting cabin, electric lift, with automatic air conditioning system, electric windows. |
| CARGO BOX | |
| Box Type | Dump |
| Inner Box Dimensions (LxWxH) (mm); Box Capacity (m3) | 5,000/4865 x 2,300/2010 x 2,000; box capacity 22.6 m3 |
| Specification | Box bottom 10mm thick steel, box sides 8mm thick, high-strength steel, square box type. |
| HYDRAULIC SYSTEM | |
| Hydraulic Cylinder | HYVA 157 chrome plated |
| INCLUDED ACCESSORIES | |
| Spare Tire | Yes (01 tire 12.00-20) |
| Fuel Tank | 400 liters aluminum alloy |
| Battery | 2 x 24V x 165Ah |
| Manufacturer’s standard repair tool kit | Yes |

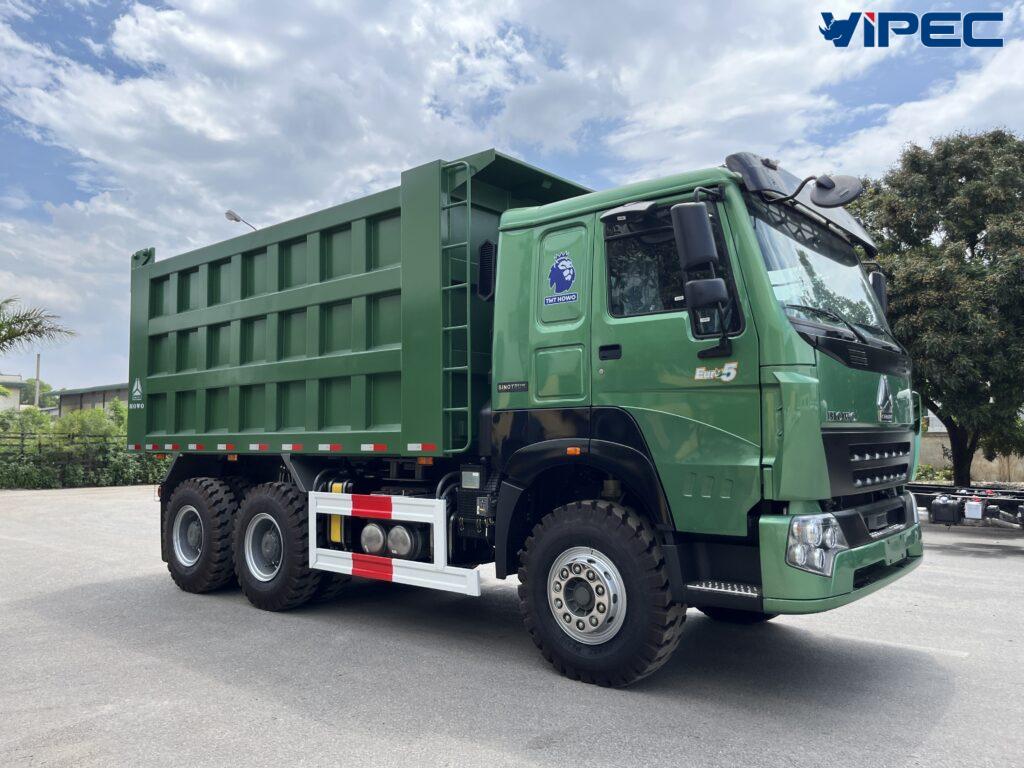

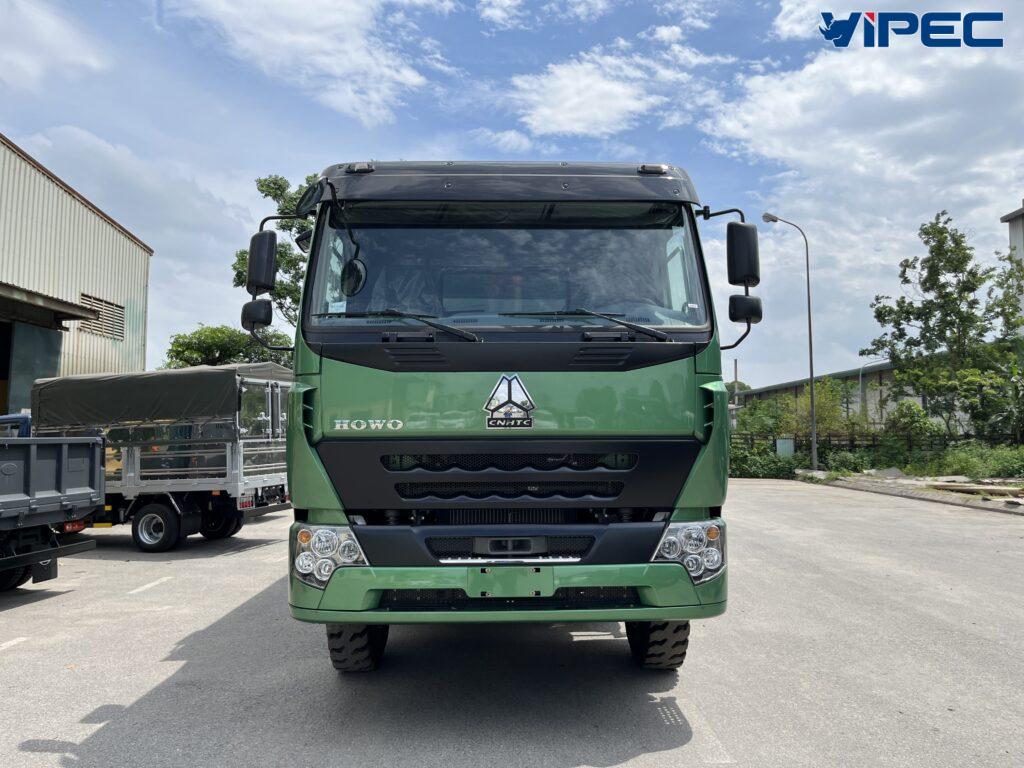

The grille is designed with robust, powerful horizontal bars, giving the truck a rugged appearance.

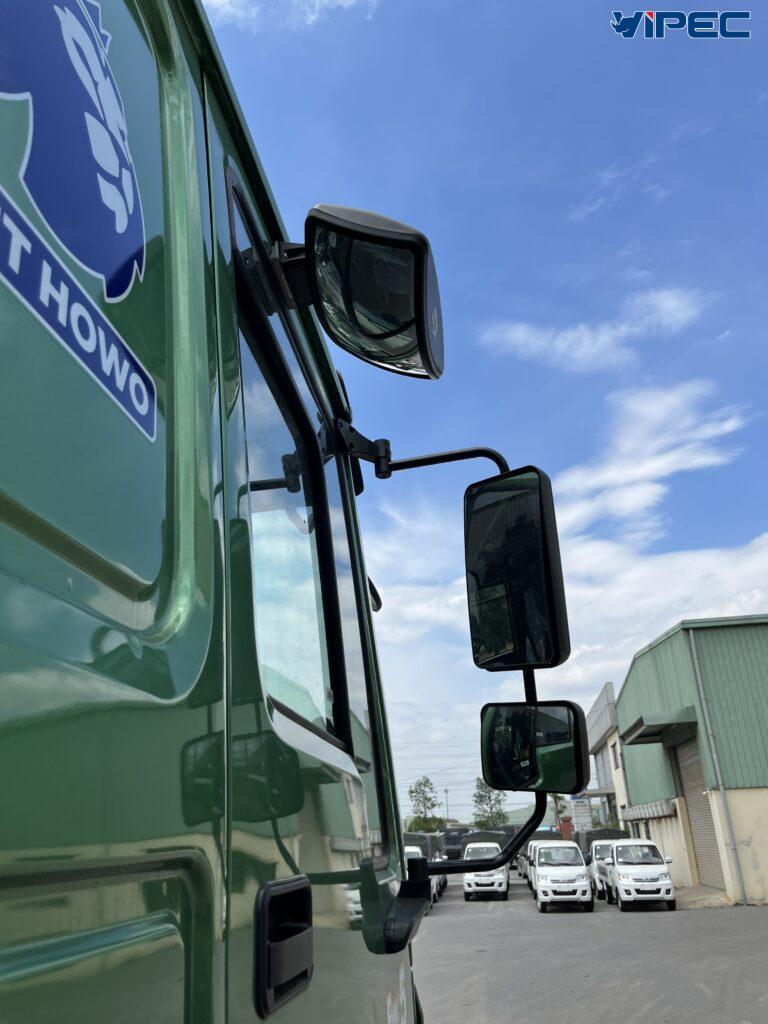

The cluster of 3 rearview mirrors enhances visibility and reduces blind spots.
The halogen headlights are designed in a more modern, refined honeycomb shape for better illumination, reduced vibration, and longer visibility in low-light conditions. Durability and low replacement cost are advantages of this type of light.
Fuel tank capacity 400L, aluminum alloy material.

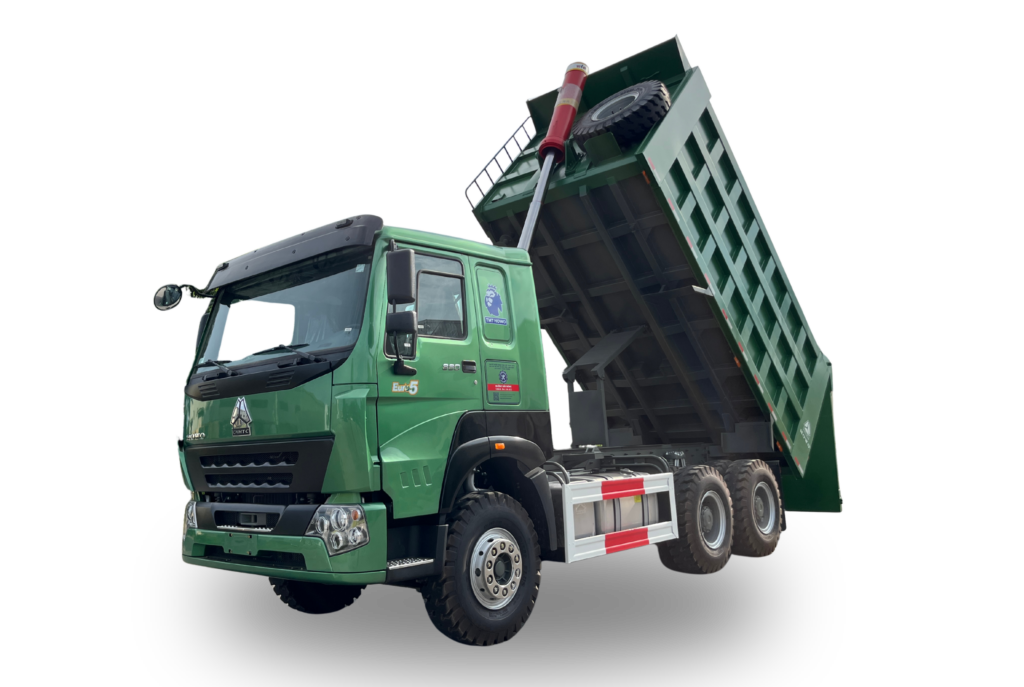

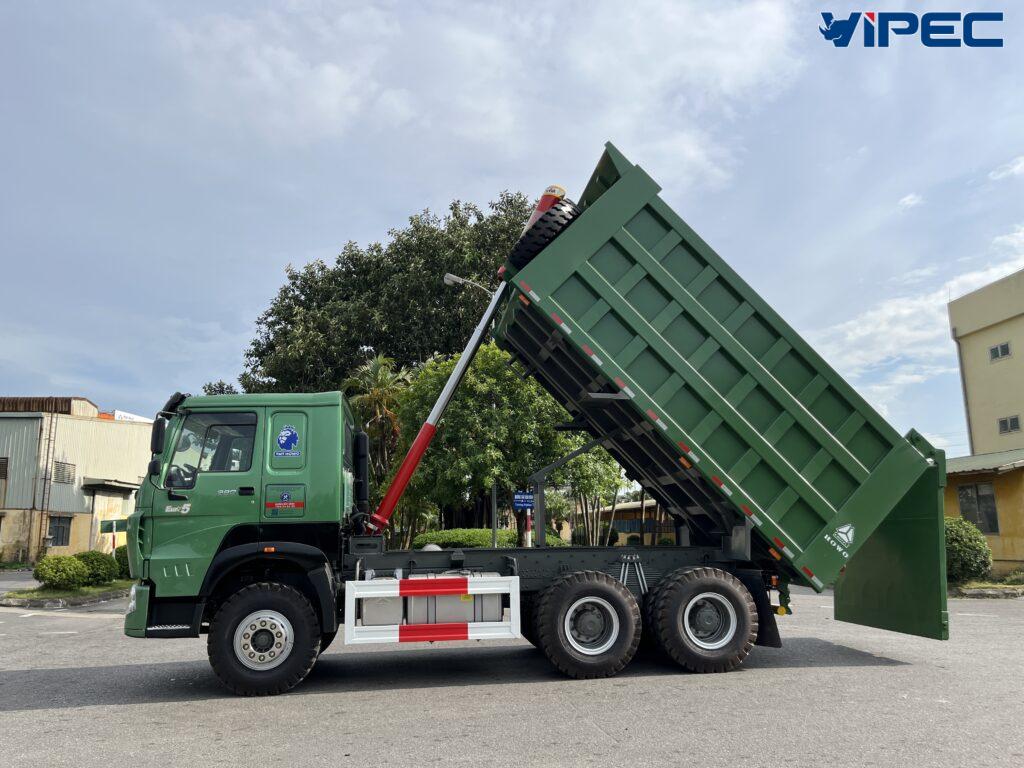

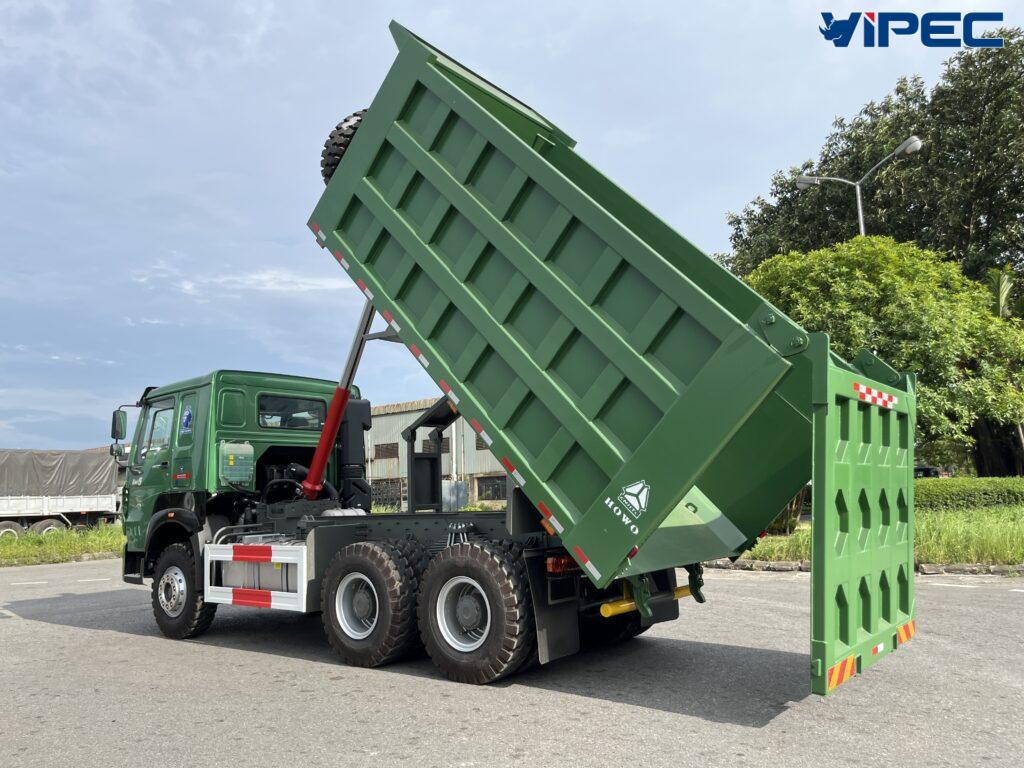

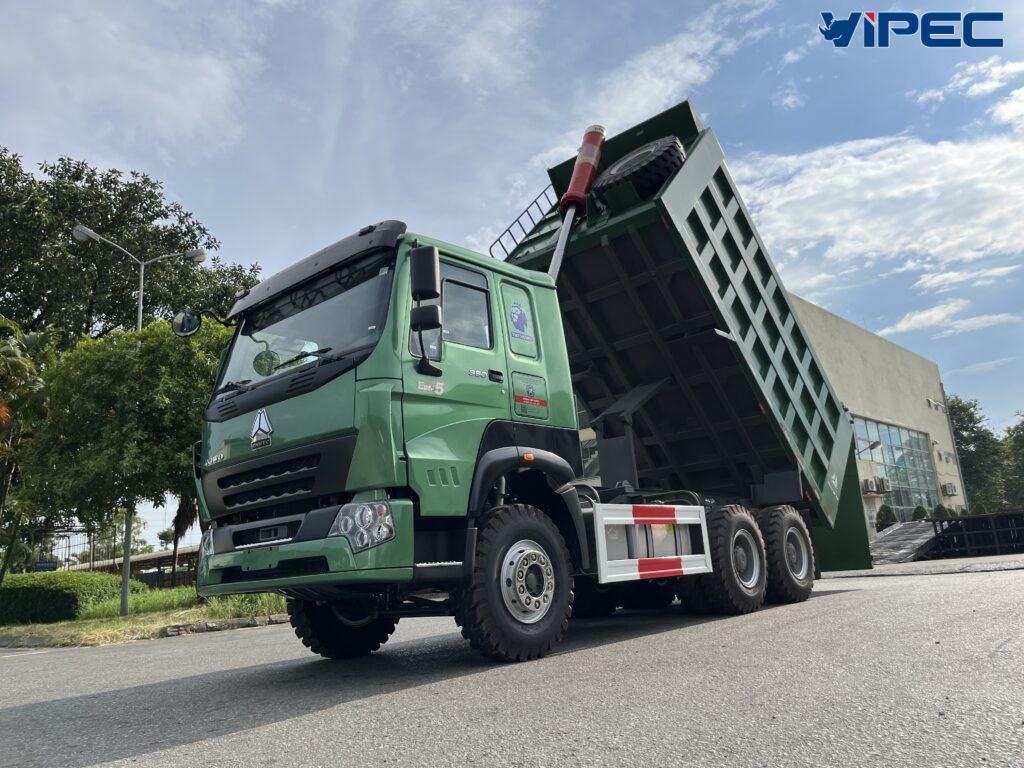

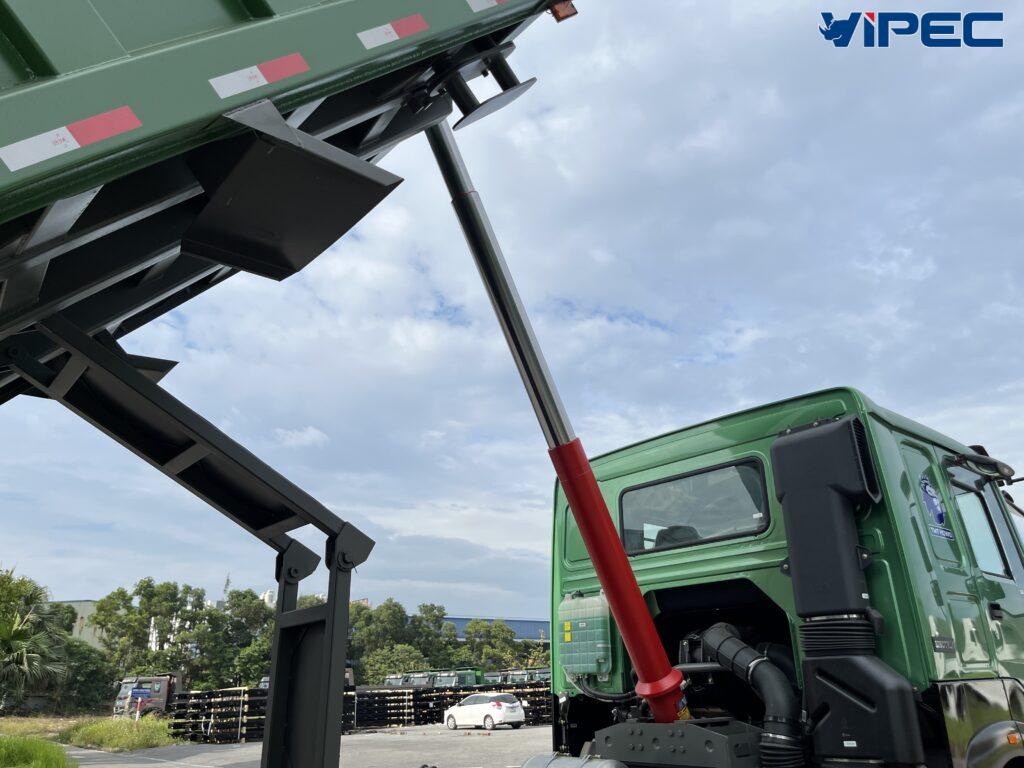

Equipped with the largest HYVA tipping cylinder in the heavy-duty truck segment, ensuring stability during lifting and dumping. Tipping cylinder Diameter: 157 mm.

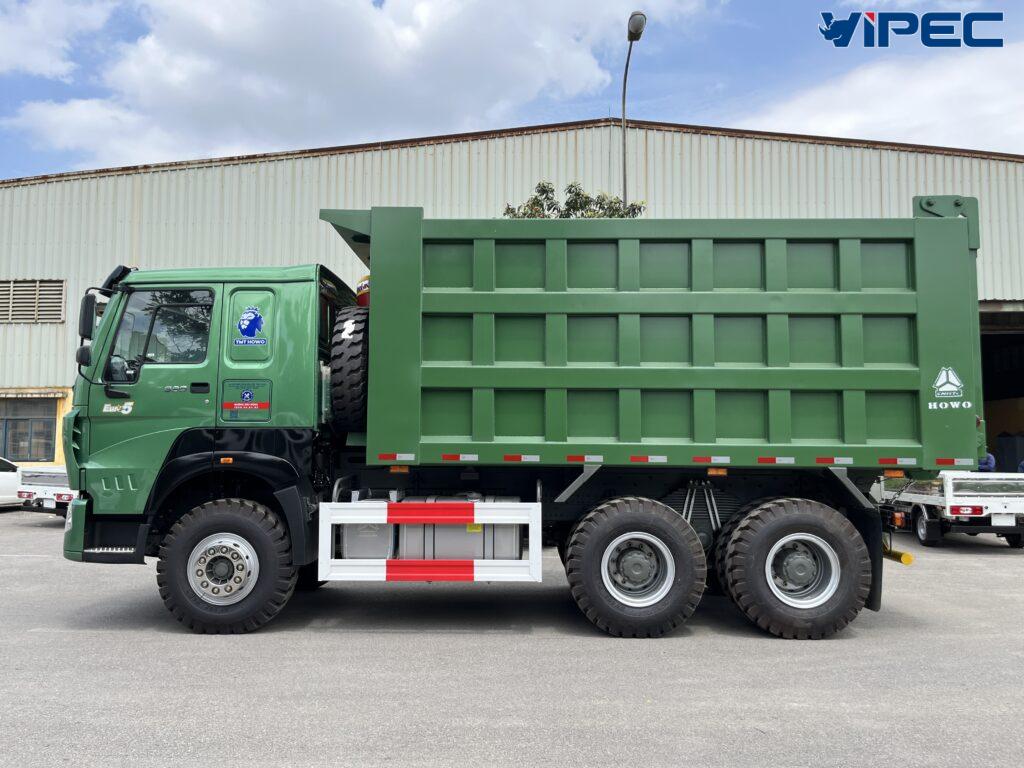

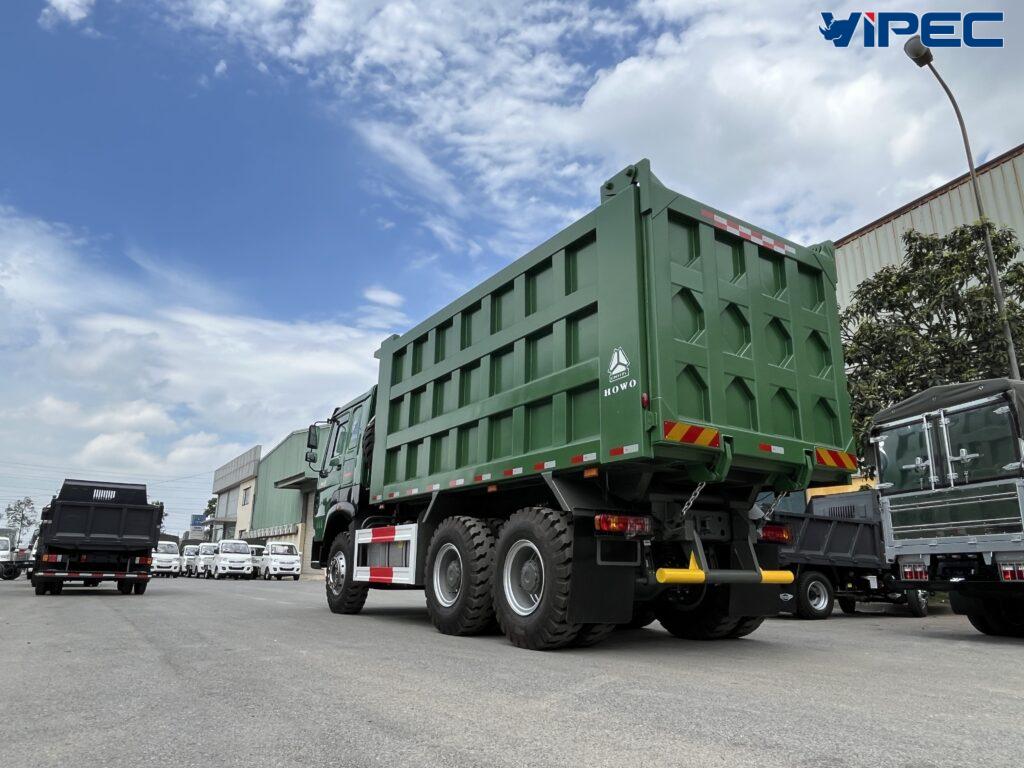

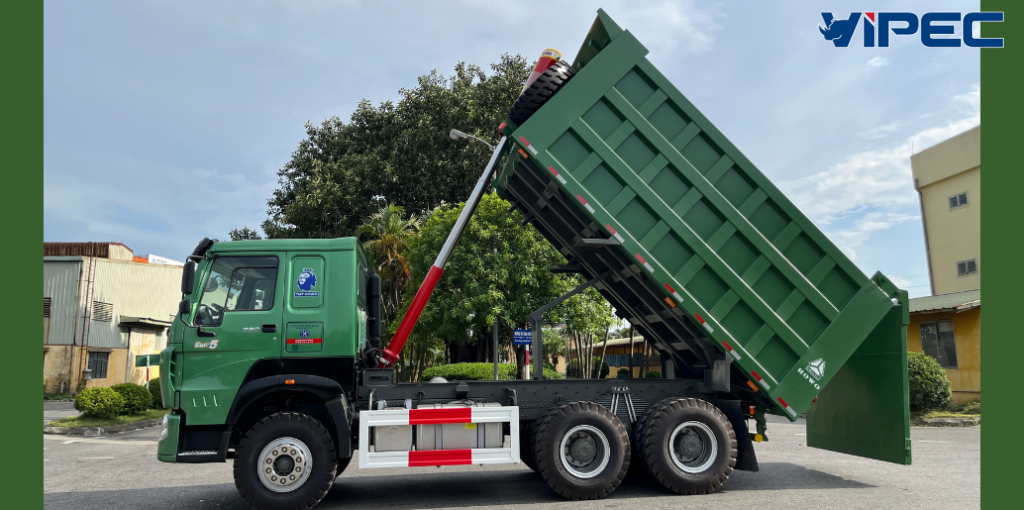

Cargo box: Box bottom 10mm thick, box sides 8mm thick, made of high-strength steel, square box type. Inner box volume 22.6 m3

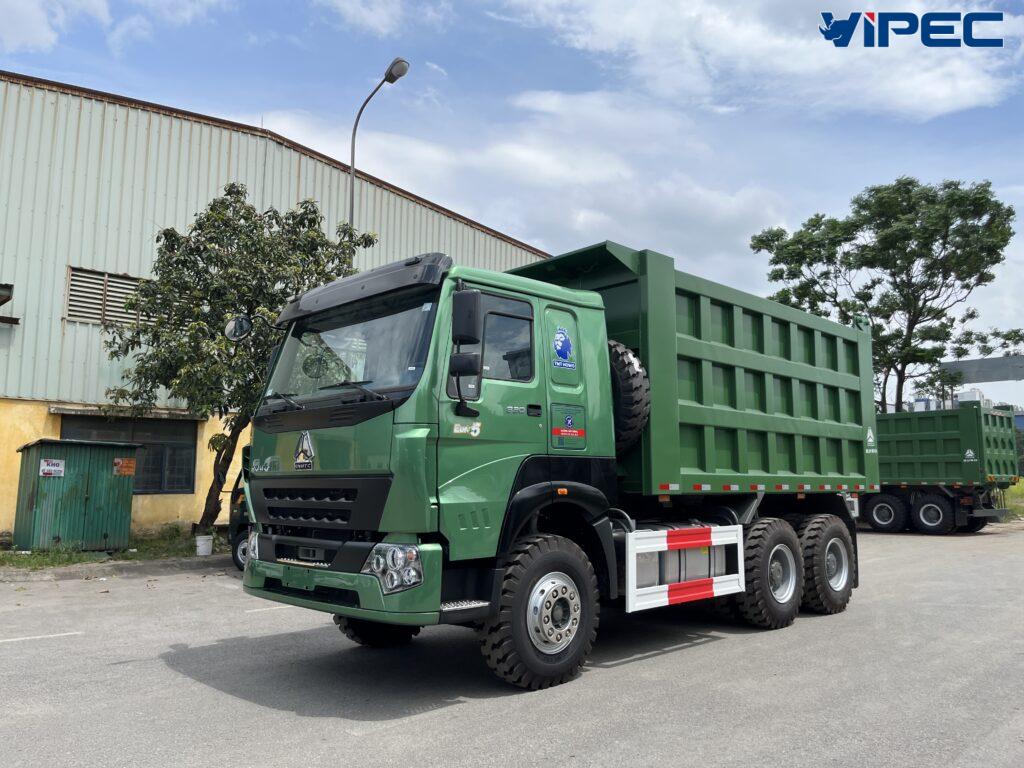

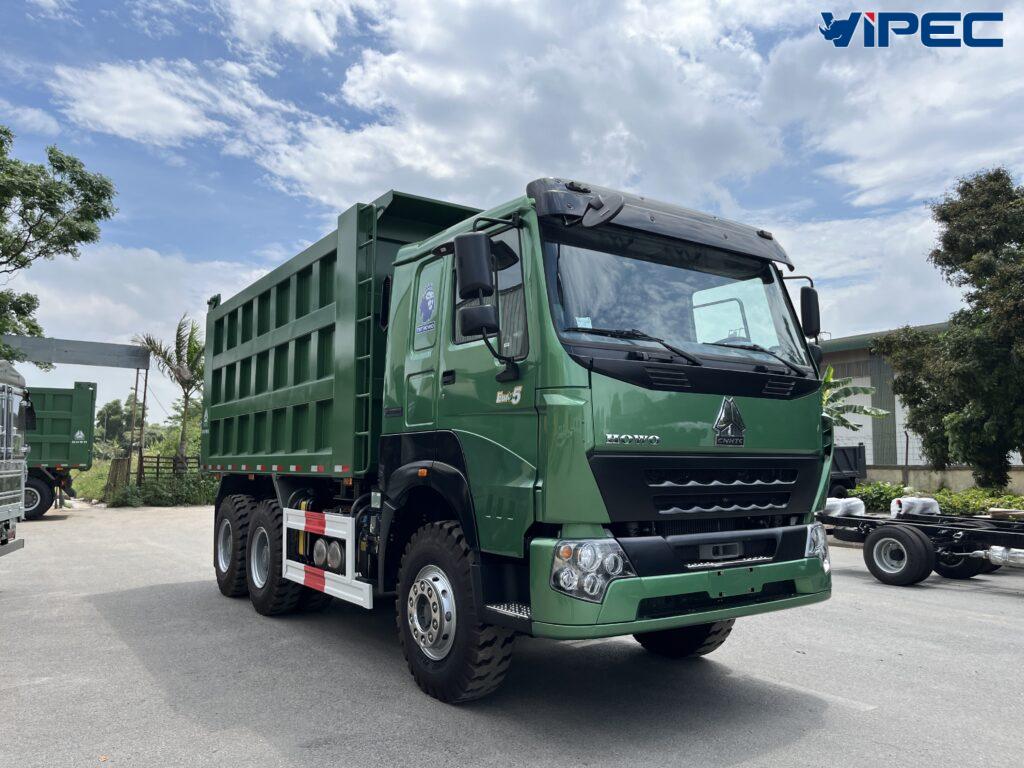

The Howo 3-axle (6×4) dump truck is powered by the D10.38-50 diesel engine, a 4-stroke, 6-cylinder in-line, water-cooled turbocharged unit. With a displacement of 9,726 cc, it delivers a maximum output of 380 HP, providing robust and powerful performance for navigating complex mountainous terrain. The engine meets Euro 5 emission standards, ensuring environmental friendliness and full compliance with the Vietnam Register’s motor vehicle emission regulations.
The vehicle is equipped with a 12-speed forward and 2-speed reverse transmission, featuring a two-stage range splitter on the gear lever for highly convenient shifting. The synchromesh gearbox ensures smooth gear engagement with minimal effort. Regarding the drivetrain, the truck utilizes an HFVGD95 front axle and MCP16ZG rear axles with a 16-ton rating, providing superior payload and overloading capabilities. This setup allows for exceptional efficiency and flexibility when navigating rough terrain, muddy tracks, or demanding mining and construction sites
The vehicle is equipped with standard tube tires from Triangle brand, size 12.00-20 (24PR), steel-belted, with high friction.
The oil tank uses a 400L aluminum tank with high aesthetic appeal and large capacity, helping drivers be more proactive on their trips, especially in remote mining areas. The leaf spring system is equipped with very thick and sturdy 11-leaf front springs and 12-leaf rear springs, providing good load capacity.
Double-layer chassis frame 300x80x(8+8)mm, load capacity up to 51 tons.

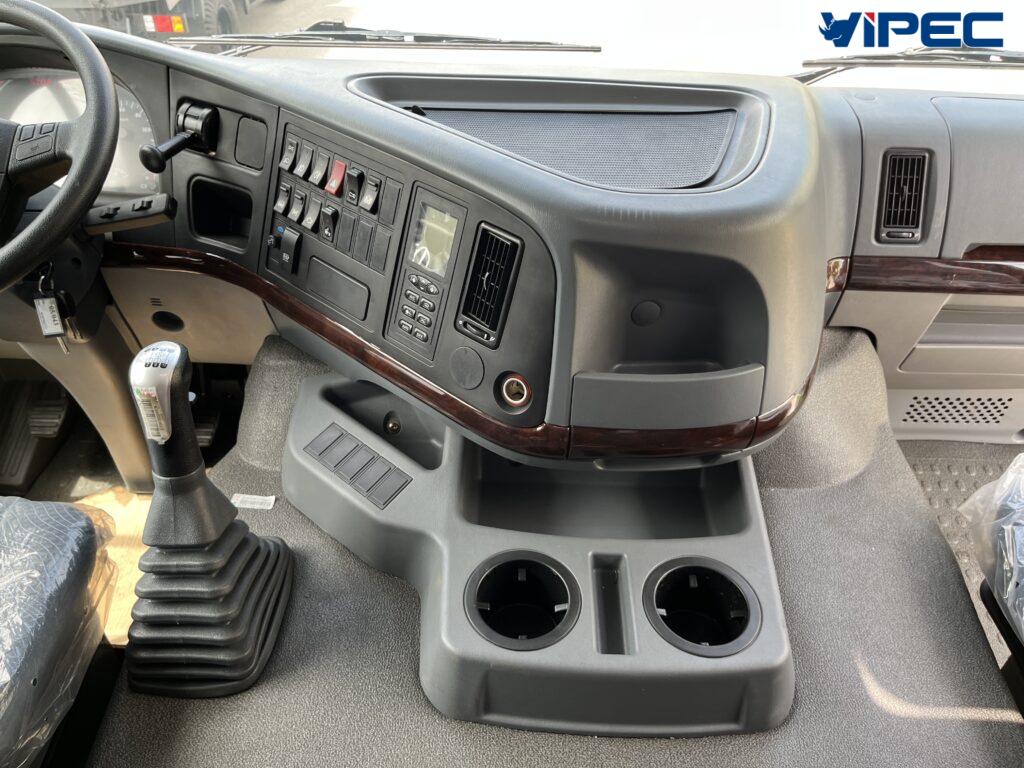

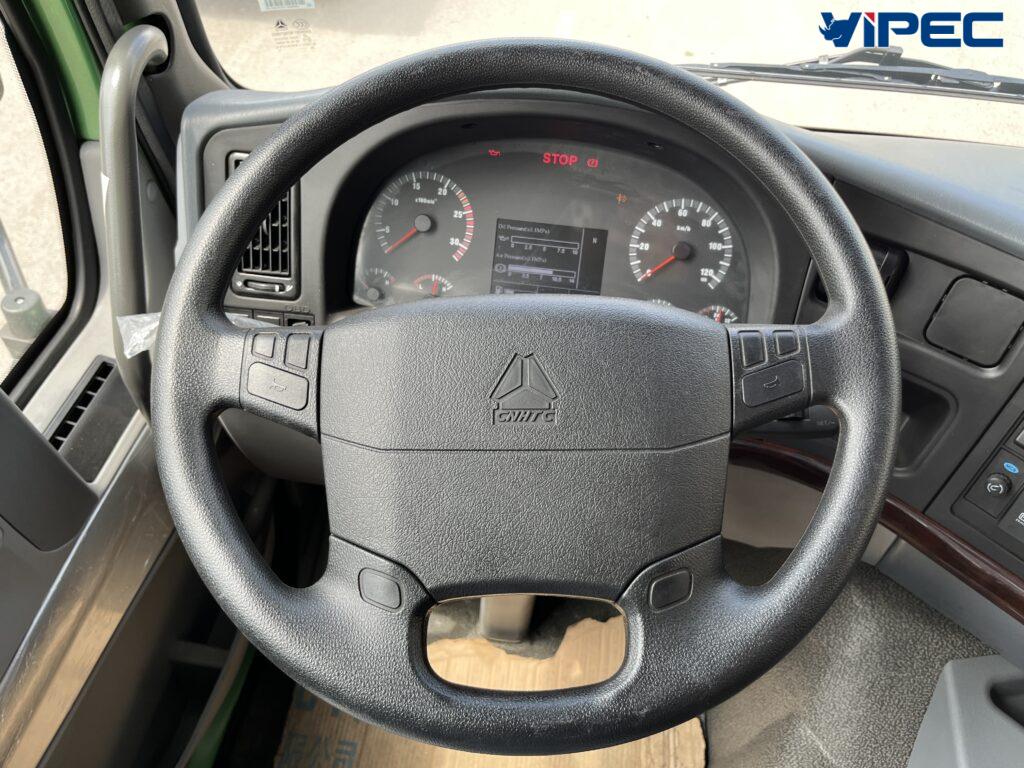

The vehicle features a simple yet sophisticated and well-equipped interior. The steering wheel is designed to fit the physique of Vietnamese people perfectly and is adjustable in three directions for convenient driving. The vehicle uses air-cushioned seats for a smoother ride on challenging roads. It also includes a sleeping berth, allowing drivers to rest after long and tiring journeys.
