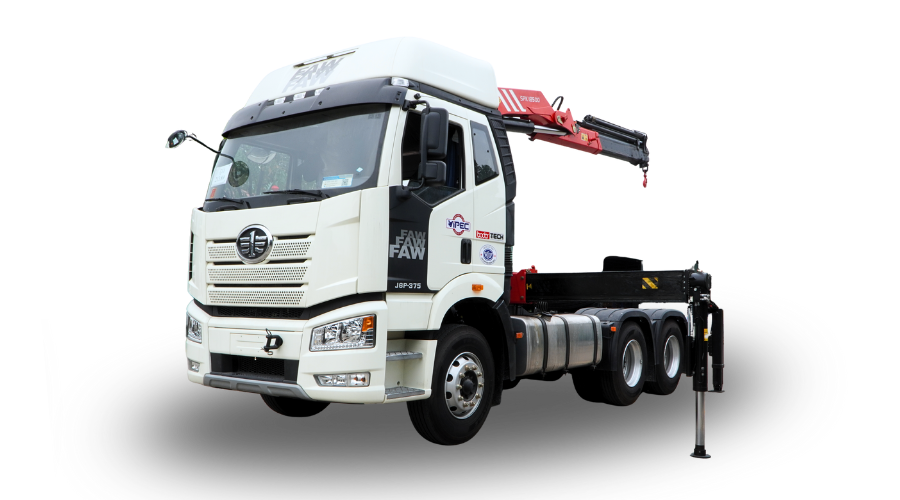

FAW J6P 6x4 - 375HP
FAWDE CA6DL3-37E5 - EURO 5
3450+1350 mm
4 hydraulic boom sections
8000 / 2
1220 / 12.4
| Item | Technical Specifications |
|---|---|
| Product Name | J6P Tractor Truck – 375HP |
| Brand | FAW |
| Vehicle Type | CA4250P66K2T1E5 |
| Drive Type | 6×4 |
| Overall Dimensions (LxWxH) | 7050 × 2500 × 3560 (mm) |
| Wheelbase | 3450 + 1350 (mm) |
| Ground Clearance | 290 (mm) |
| Curb Weight | 8.350 (kg) |
| Gross Vehicle Weight | 25.000 / 24.000 (kg) |
| Gross Combination Weight | 40.000 / 39.520 (kg) |
| Seating Capacity | 2 |
| Engine | 4-stroke Diesel, 6-cylinder in-line, water-cooled, turbocharged, CRDi electronic fuel injection |
| Engine Brand | FAWDE |
| Engine Type | CA6DL3-37E5 |
| Cylinder Capacity | 8.600 cc |
| Emission Standard | EURO 5 |
| Max. Power | 375 HP / 2.100 rpm |
| Max. Torque | 1.550 N.m / (1.300 – 1.500 rpm) |
| Clutch | Dry type, single disc, spring core, hydraulic actuation, pneumatic assist |
| Gearbox | FAST 12JSD180TA – Mechanical, 12 forward + 2 reverse gears |
| Front Axle | FAW 2020 |
| Rear Axle | FAW Ø435, drive axle, with axle differential lock and inter-axle differential lock |
| Main Drive Ratio | 4.875 |
| Tires | 12R22.5 – 18PR |
| Fuel Tank | Aluminum alloy, 600 liter capacity |
| Frame Dimensions | 300 × 80 × (8+5) (mm) |
| Battery | 12V – 150Ah × 2 (dry cell) |
| Fifth Wheel | JOST Ø50, with safety lock |
| Service Brake | Dual-circuit air brake |
| Parking Brake | Spring energy, acting on wheels of axle 2 & 3 |
| Auxiliary Brake | Engine Brake |
| Front Suspension System | 3-leaf spring, hydraulic shock absorbers, stabilizer bar |
| Rear Suspension System | 4-leaf spring, hydraulic shock absorbers, stabilizer bar |
| Steering System | Hydraulic Power Assist |
| Cabin Type | J6P Cabin, 2 sleeping berths, high roof, flat floor, 4-point air suspension |
| Optional Colors | Red / White / Blue / Orange / Gray / Black |
| Standard Equipment | Automatic air conditioning, FM/Radio/USB, Cruise control system, power windows, electric cabin tilt, vehicle access ladder, trailer brake, air deflector, anti-splash mudguards |
| Basic Specifications | SPK18500C |
|---|---|
| Max. Lifting Moment [mt] | 18.3 |
| Max. Lifting Capacity (kg) at (m) | 8000 / 2 |
| Max. Hydraulic Outreach [m] | 12.4 |
| Max. Outreach Lifting Capacity [kg] | 1220 |
| Number of Hydraulic Boom Sections | 4 |
| Slewing Angle [°] | 400 |
| Std. Stabilizer Spread [mm] | 5640 |
| Folded Crane Dimensions [LxWxH] | 2500 x 940 x 2300 |
| Max. Operating Pressure [bar] | 300 |
| Recommended Pump Capacity [l/min] | 45 – 65 |
| Crane Dead Weight including Outriggers [kg] | 2484 |

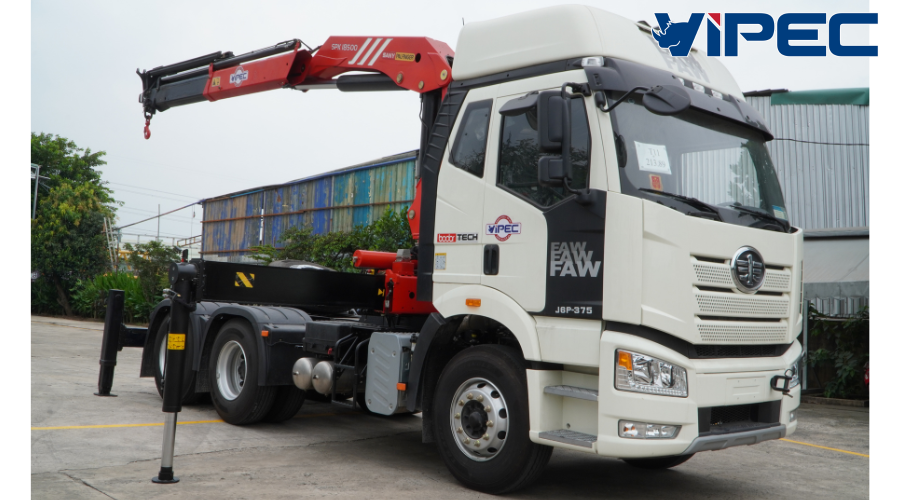

The cabin design has many distinctive features: the square cabin optimizes the driving space.

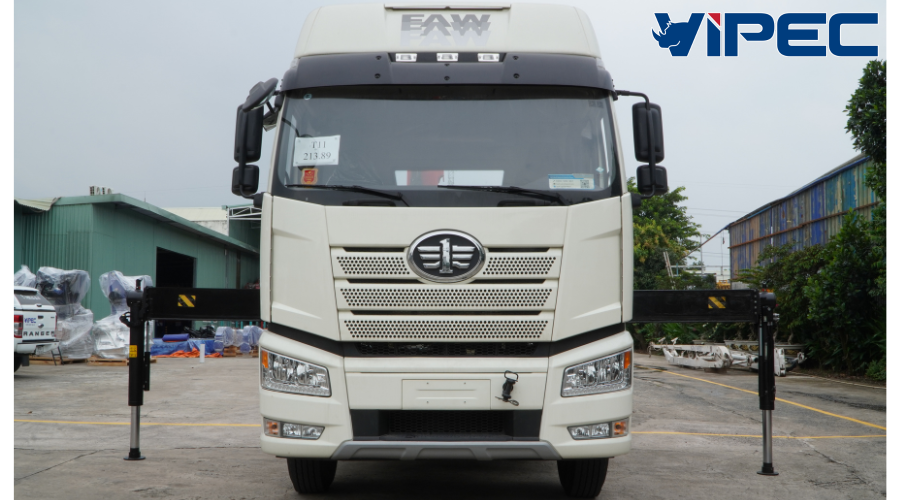

The front of the vehicle is equipped with halogen headlights, providing better visibility in all conditions.
Equipped with multiple rearview mirrors, wide viewing angles, minimizing blind spots, and reducing collisions.
The 12R22.5-18PR tire size offers good durability and load capacity, increasing road grip.
The engine, manufactured by FAW itself, has a cylinder capacity of up to 8600 cc, 4-stroke, 6-cylinder in-line, turbocharged, water-cooled, producing a maximum power of 375HP for a towing capacity of up to 40 tons.
The FAST 12JSD180TA gearbox, with 12 forward and 2 reverse gears, ensures smooth and easy shifting.
At the rear is a sleeping berth, and with the high-roof J6P cabin, there are two large sleeping berths.
The air-suspension seats provide a smooth and comfortable ride for long journeys.

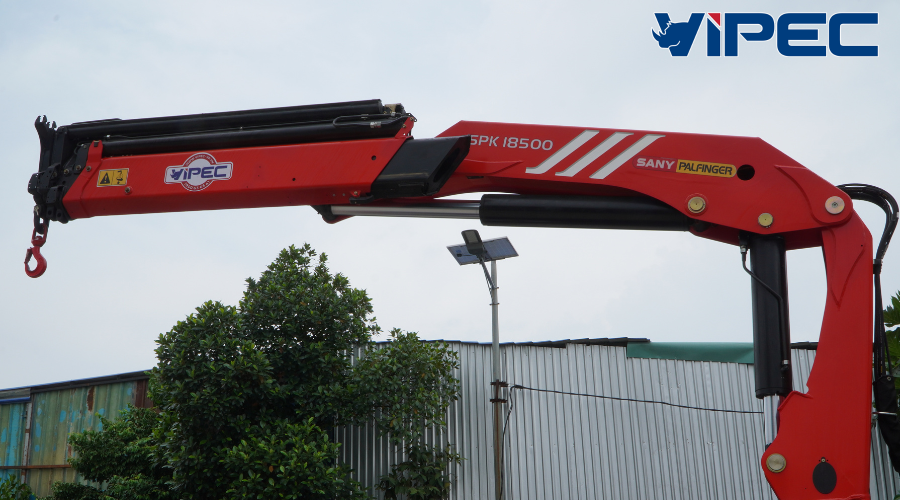

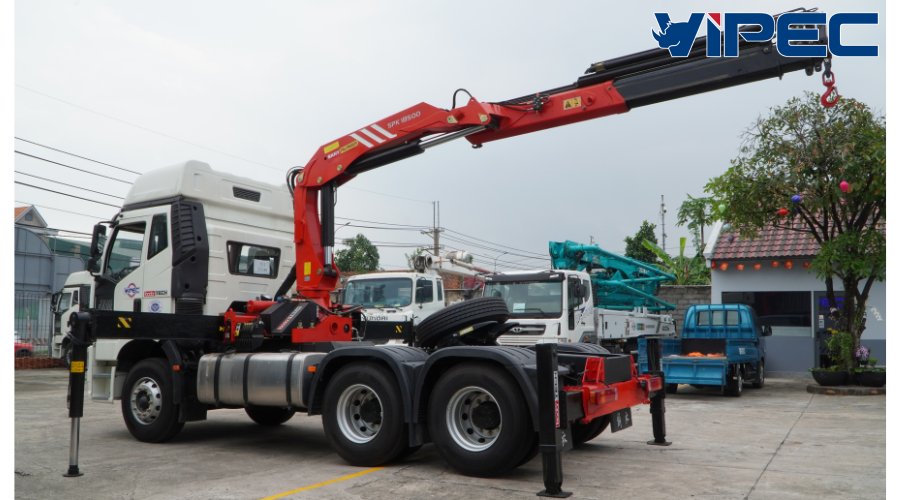

HD paint on the folding crane with a high-quality surface coating offering superior corrosion resistance
Durable UV-resistant coating. Aesthetic and attractive colors
Radio remote control for folding crane: efficient control, enabling safe operation from outside the danger zone
Easy maintenance, quick troubleshooting

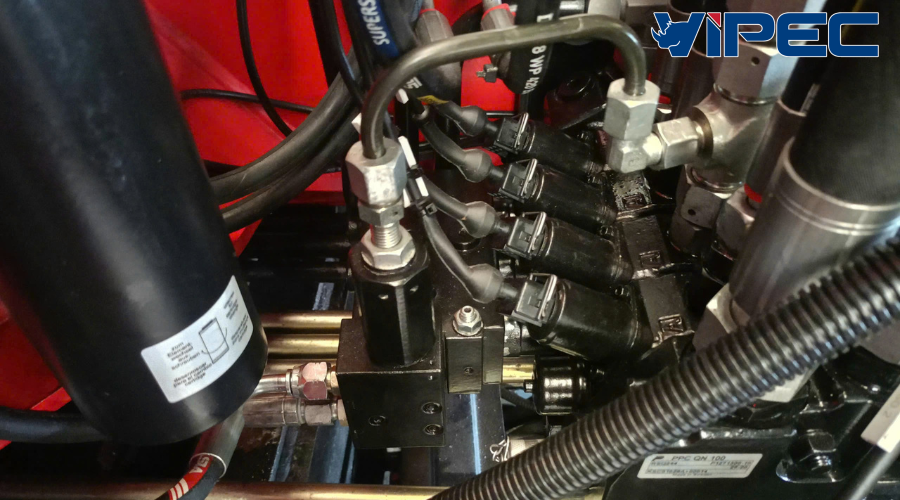

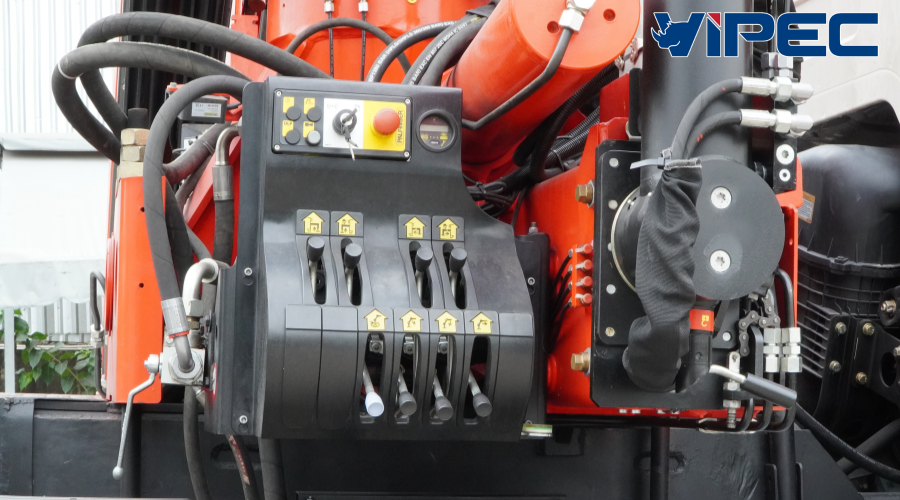

Ergonomic crane control levers are logically arranged for all crane functions
Functional design provides more convenient operation during control
Easy to maintain and service
OSK feature on folding crane:
Automatically locks operation when the crane reaches its maximum load threshold.
Prevents unintentional overloading during operation.
Ensures the equipment always operates within a safe load range, enhancing durability and working efficiency.
